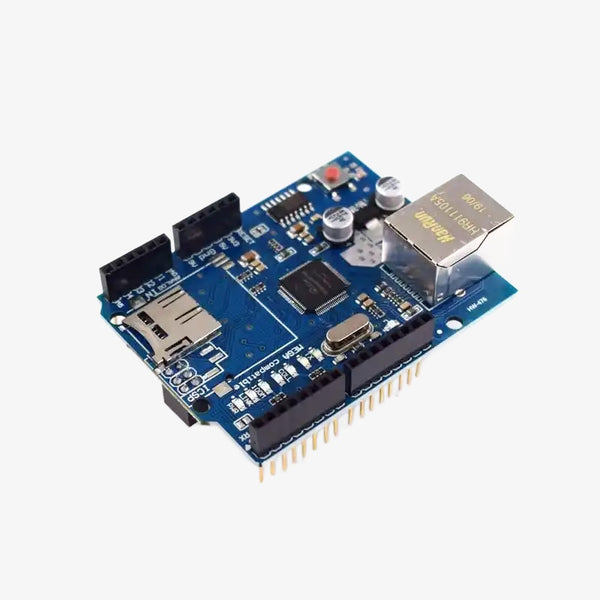

Ethernet W5100 Shield Network Expansion Board for Arduino with Micro SD Card Socket

The Arduino Ethernet W5100 Shield is a powerful expansion board designed to add network connectivity and data storage capabilities to your Arduino projects. Equipped with the W5100 Ethernet controller and a Micro SD card slot, it is ideal for IoT, web server, and data logging applications.FeaturesW5100 Ethernet Controller: Provides stable and fast Ethernet connectivity.Micro SD Card Slot: Supports data storage and retrieval for web hosting or logging.Integrated TCP/IP Stack: Simplifies network communication protocols.Stackable Design: Standard Arduino shield size for compatibility with Arduino Uno, Mega, and similar boards.Multiple Socket Connections: Supports up to four simultaneous socket connections.LED Indicators: Displays network activity and status.SpecificationsEthernet Speed: 10/100 Mbps.Micro SD Card Compatibility: FAT16 and FAT32 formatted cards up to 32GB.Voltage Input: 5V (powered by Arduino).Dimensions: Standard Arduino shield size.Communication Interface: SPI for both Ethernet and SD card operations.Pinout:Power Pins:VCC: 5V power supply (from the Arduino)GND: GroundSPI Pins (for Ethernet and SD communication):MISO: Master In Slave Out (D12 on Arduino UNO)MOSI: Master Out Slave In (D11 on Arduino UNO)SCK: Serial Clock (D13 on Arduino UNO)SS (Slave Select): Used to select the SPI device (D10 on Arduino UNO)Ethernet Chip Select Pin:CS (Ethernet): Chip Select for the Ethernet module (D10 on Arduino UNO)SD Card Chip Select Pin:CS (SD Card): Chip Select for the microSD card slot (D4 on Arduino UNO)Interrupt Pin (Optional):IRQ: Interrupt Request Pin (used in some applications, not always necessary)Micro SD Card Slot:The shield provides a microSD card slot for data storage, supporting cards up to 32GB.

INR 536 · In stock
