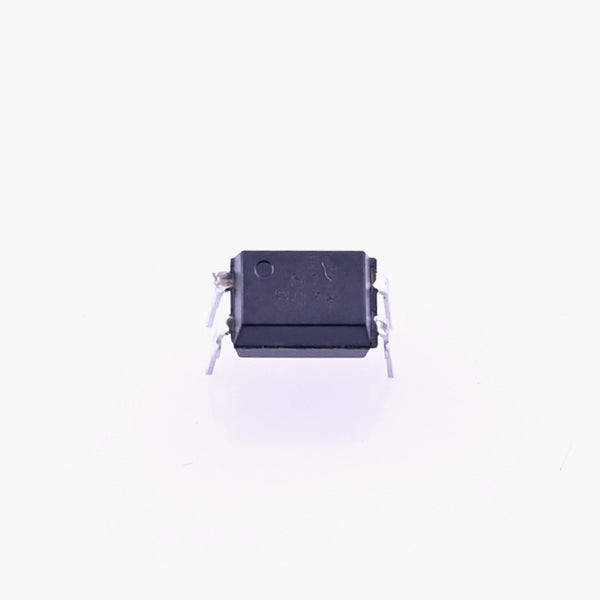

EL817C Optocoupler/Phototransistor IC - DIP-4 Package

Optocoupler is an important component in electronics and here is EL817C that is a hugely popular optocoupler available in quartz components with such great price.As like other optocouplers, it has an infrared emitting diode that optically controls a phototransistor. The forward voltage of the diode is typically 1.2V at 20mA of forward current. It is packaged in a 4-pin DIP Package.Since it is the EL817C, it has the CTR value of 200-400 % at 5mA forward current with 5V of collector-emitter voltage. The phototransistor supports a maximum of 50mA collector current.EL817C pinout: Specification :Package/Case : DIP-4Mounting Type : THCTR : 200-400% at IF=5mA ,VCE=5VRise Time: 18μsFall Time : 18μsOperating Temperature Range (°C) : -55 to 110Dimensions in mm (LxWxH) : (each) 6.50 x 4.58 x 4.50Maximum Collector Emitter Voltage : 35 VMaximum Collector Current : 50 mAIsolation Voltage : 5000 VrmsMaximum Collector Emitter Saturation Voltage :2 VVf - Forward Voltage :2 VVr - Reverse Voltage : 6 VPd - Power Dissipation : 200 mWNumber of Channels : 1 ChannelEL817C Applications:SMPSIsolated Data inputMeasurementsCommunication between two different voltage level circuitsHazardous interfaces where manual interventions requiredHigh power Relay driving EL817C Dimension and footprint: Package Contains1x EL817C DIP Package
