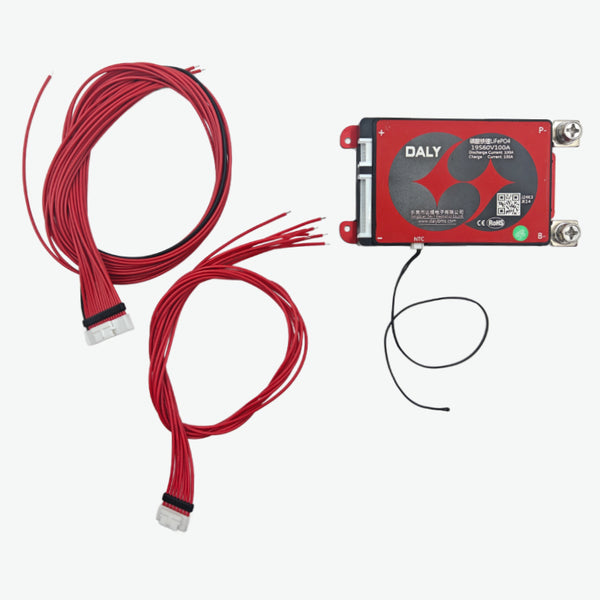

DALY LiFePo4 19S 60V 100A Waterproof Battery Management System - BMS Protection Board

DALY LiFePo4 19S 60V 100A BMS is a Lithium Battery Protection Board (PCM BMS) designed for balance charging in LiFePo4 battery packs. It employs an A-level protective integrated circuit (IC) that ensures robust safety and efficient performance. Its high load capability with a 100A continuous discharge current makes it an ideal solution for high-demand battery applications. The board incorporates a power MOSFET with high voltage resistance and low internal resistance, while an integrated heat sink significantly aids in cooling. DALY LiFePo4 19S 60V 100A BMS Module Features:State of charge calculations.Cell over-voltage and under-voltage protection.Intelligent battery balancing (passive).Fully sealed waterproof technology with waterproof, dustproof, shockproof, anti-squeezing, and other protective functions.Specification:SpecificationValueModelLiFePo4 19S 60V 100ACharge Voltage (V)69,35Charge Current (A)100Balance Current (mA)30±5Balance Detect Voltage (V)3.6Working Current (uA)100Overcharge Detect Voltage (V)3.75±0.05Overcharge Release Voltage (V)3.55±0.05Over Discharge Detect (V)2.2±0.05Over Discharge Release (V)Off loadWorking Temperature Range (°C)-20 to 70Cable Size (AWG)10Length (mm)65Width (mm)125Height (mm)13Explore wide range of DALY Smart BMS >Package Includes:1 x DALY LiFePo4 19S 60V 100A Waterproof Battery Management System - BMS Protection Board

Check price on store · In stock
