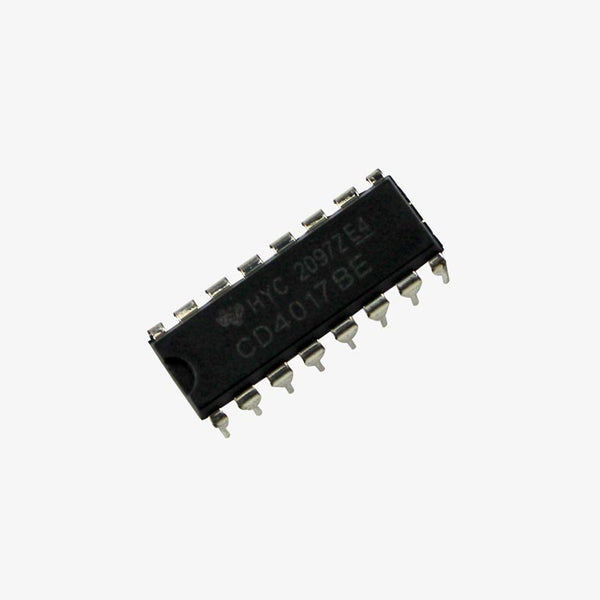

CD4017 Decade Counter IC - DIP-16 Package

The CD4017 IC is a 5-stage CMOS Decade counter that counts to 10. It has 10 decoded outputs and a carry out pin that represents numbers 1 to 10. It also has a single clock pin, so for every clock pulse ,the counting increases with one. The IC can be powered from a 3V to 5V supply voltage with a clock speed of 5MHz. CD4017 is widely used in a number of applications, including, binary counter, decoder, frequency divider, LED chaser, LED matrix and more. Product Description of CD4017 Decade Counter ICAn alternative to the Decade Counter is the CD4518 - Dual BCD Up Counter IC. CD4017 IC Pin Description Features of CD4017 Decade Counter ICFully static operationWide supply voltage range: 3.0V to 15VHas a high noise immunity of: 0.45 VDD (typ.)Has a low power Fan out of 2 driving 74LTTL compatibility or 1 driving 74LSHas a speed operation 5.0 MHz (typ.) with 10V VDDLow power: 10mW (typ.)Operating Temperature is from -40 °C to +125 °CLead Temperature (TL) (Soldering, 10 seconds) : 260°CMechanical Drawing of CD4017 Decade Counter IC Package Contents1× CD4017 Decade Counter IC

INR 11 · In stock
