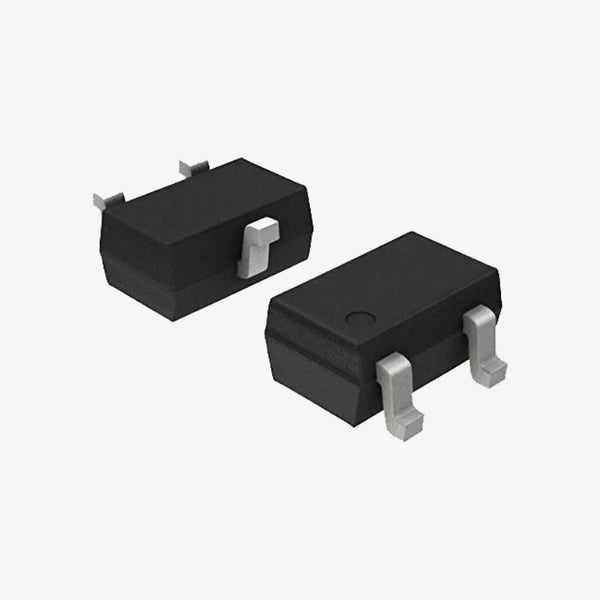

S9015 PNP Transistor - SOT-23 SMD Package (Pack of 10)

The S9015 PNP Transistor - SOT-23 SMD Package is a general-purpose transistor designed for low-noise amplification and signal switching. It offers high gain, stable operation, and reliable performance in compact circuit designs. Ideal for audio frequency amplifiers, low-power switching, and complementary use with the S9014 NPN transistor.CLICK HERE FOR DATASHEETFeatures:Complementary pair to S9014 NPN transistorHigh DC current gain for stable amplificationLow collector-emitter saturation voltageCompact SOT-23 surface-mount designWide operating temperature range for reliable useSpecifications:Collector-Base Voltage (VCBO): -50VCollector-Emitter Voltage (VCEO): -45VEmitter-Base Voltage (VEBO): -5VCollector Current (IC): -100mACollector Power Dissipation (PC): 200mWThermal Resistance Junction-to-Ambient (RθJA): 625°C/WJunction Temperature (TJ): 150°CStorage Temperature (TSTG): -55°C to +150°CCollector-Base Breakdown Voltage (V(BR)CBO): -50V Collector-Emitter Breakdown Voltage (V(BR)CEO): -45V Emitter-Base Breakdown Voltage (V(BR)EBO): -5V Collector Cutoff Current (ICBO): -0.1µA Emitter Cutoff Current (IEBO): -0.1µA DC Current Gain (hFE): 200 to 1000Collector-Emitter Saturation Voltage (VCE(sat)): -0.3V Base-Emitter Saturation Voltage (VBE(sat)): -1V Transition Frequency (fT): 150MHz Package Includes:10 × S9015 PNP Transistor - SOT-23 SMD Package

INR 15 · In stock
