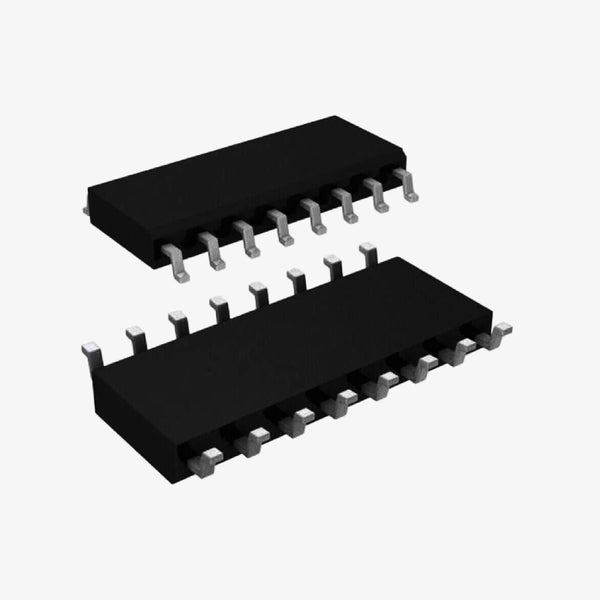

SG3525AP PWM Controller IC - NSOIC-16 SMD Package

The SG3525AP is a high-efficiency pulse width modulation (PWM) controller IC, designed specifically for switching power supplies and DC-DC converters. With a wide supply voltage range from 8V to 35V and support for switching frequencies up to 500kHz, it is ideal for a variety of power regulation applications. The IC includes a built-in oscillator, error amplifier, soft start, and undervoltage lockout (UVLO) functions. Dual totem-pole outputs can directly drive external power MOSFETs or bipolar transistors. Housed in a NSOIC-16 SMD package, this IC is suitable for compact and space-efficient designs.Features of SG3525AP PWM Controller IC:Wide operating supply voltage range: 8V to 35VHigh switching frequency support up to 500kHzBuilt-in oscillator with external timing resistor and capacitorIntegrated soft start and undervoltage lockout (UVLO)Dual push-pull outputs with 500mA peak current capabilityOn-chip error amplifier for closed-loop controlSMD NSOIC-16 package for compact surface-mount applicationsCompatible with both MOSFET and BJT switching devicesSpecifications of SG3525AP PWM IC:Model: SG3525APFunction: PWM ControllerSupply Voltage: 8V – 35VSwitching Frequency: Up to 500kHzOutput Current: 500mA (peak per output)Package: NSOIC-16 – SMDOperating Temperature: 0°C to +70°CBrand: Generic Package Includes:1 × SG3525AP PWM Controller IC – NSOIC-16 – SMD Package

INR 19 · In stock
