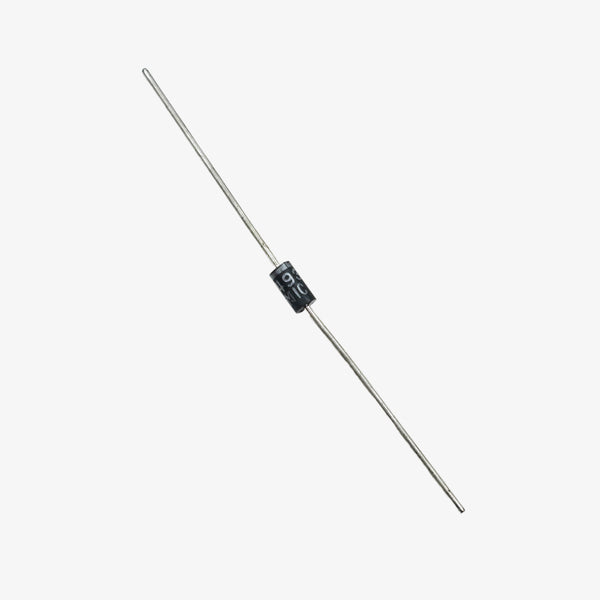

1N4937 Fast Recovery Rectifier Diode 1A

The 1N4937 Fast Recovery Rectifier Diode 1A is designed for efficient AC to DC rectification in fast-switching applications. Its molded DO-41 body ensures reliable operation under high-speed load conditions. Ideal for power supplies, inverters, converters, and freewheeling circuits.CLICK HERE FOR DATASHEETFeatures:High-speed switching for improved efficiencyLow forward voltage drop for minimal energy lossExcellent surge current toleranceMolded epoxy body with UL 94V-0 flammability ratingSpecifications:Maximum Repetitive Peak Reverse Voltage (VRRM): 600 VMaximum RMS Voltage (VRMS): 420 VMaximum DC Blocking Voltage (VDC): 600 VAverage Forward Rectified Current (IF(AV)): 1.0 APeak Forward Surge Current (IFSM): 30 AMaximum Instantaneous Forward Voltage (VF) at 1A: 1.2 VMaximum DC Reverse Current (IR) at 25°C: 5 µAMaximum DC Reverse Current (IR) at 100°C: 100 µAMaximum Reverse Recovery Time (trr): 200 nsTypical Junction Capacitance (CJ): 12 pFOperating Temperature Range (TJ, TSTG): -50°C to +150°CPackage Includes:1 × 1N4937 Fast Recovery Rectifier Diode 1A

INR 3 · In stock
