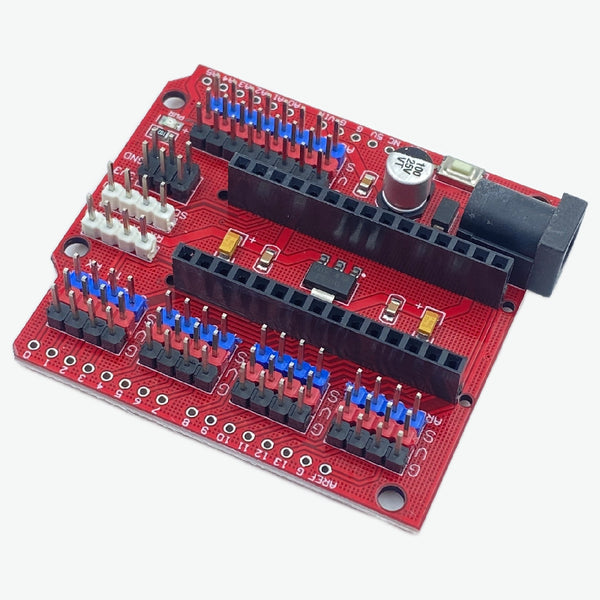

Nano 328P Expansion Adapter Breakout Board IO Shield

The Nano 328P Expansion Adapter Breakout Board IO Shield is a versatile and easy-to-use expansion board tailored for Arduino Nano (ATmega328P) boards. It brings out all I/O, power, and serial pins of the Nano to clearly labeled headers and offers additional 3-pin headers (Signal, VCC, GND) for effortless connection to external sensors, modules, and actuators. This makes it an ideal prototyping companion for embedded systems, robotics, and DIY electronics.Designed to simplify complex wiring, the board ensures stable connections and streamlined interfacing between the Nano and other components. It can be directly mounted to a baseboard or placed on a breadboard setup.Features of Nano 328P Expansion Adapter Breakout Board IO Shield:14 Digital I/O pins (servo-style headers with GND, VCC, and Signal)8 Analog pins with separate GND and power outputs6 PWM-capable pins for precise motor/signal control5 I2C expansion headers for easy module connectivity1 Servo external power input for high-current applications1 AREF output for analog reference customization1 dedicated 3.3V regulated output for lower-voltage modulesClearly labeled pin layout for error-free connectionsCompact and through-hole mountable designCompatible with Arduino Nano V3.0 and similar boardsSpecifications of Nano 328P Expansion Adapter Breakout Board:Input Voltage: Supplied via NanoCompatibility: Arduino Nano ATmega328PPin Output: All Nano I/O pins with corresponding VCC and GNDMounting: Through-hole and screw-mount readyMaterial: FR4 high-quality PCBDimensions: Approx. 58 x 54 x 12mmPackage Includes:1 × Nano 328P Expansion Adapter Breakout Board IO Shield

INR 84 · In stock
