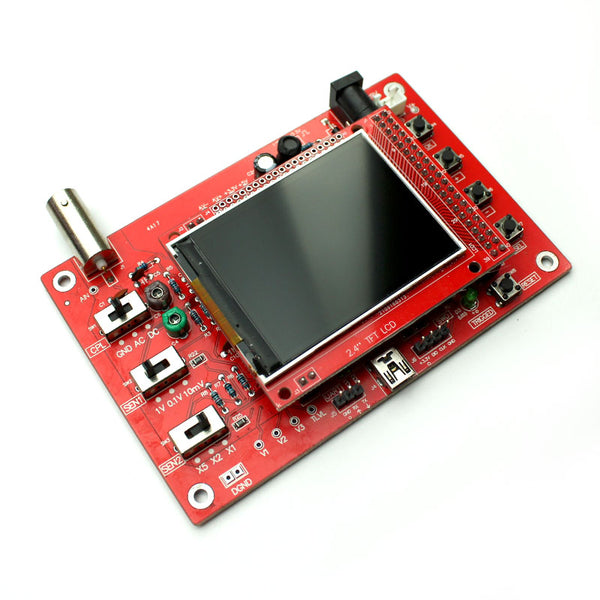

DSO138 Handheld Oscilloscope Kit with 2.4 Inch Display

This is ready to use handheld oscilloscope kit powered by ARM Cortex-M3 processor (STM32F103C8) and includes a 2.4-inch TFT display. The DSO138 oscilloscope kit can display frequency, period, pulse width, duty ratio, and max/min/avg/peak/virtual values.Features:Observable previous trigger waveform (negative delay).Can freeze at any time waveform display (HOLD function).Comes 1Hz /3.3V square wave test signal source.With waveform parameter digital display, including frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.Waveform storage function: will not lose the waveform after power off.Short-circuit and open-circuit detection: can help the user find out the soldering error.TFT controller recognition function.Specifications:Maximum Real-time Sampling Rate: 1MspsAccuracy: 12BitSampling Buffer Depth: 1024 bytesAnalog Bandwidth: 0-200KHzVertical Sensitivity: 10mV / Div - 5V / Div (1-2-5 progressive manner)Input Impedance: 1MΩMaximum Input Voltage: 50Vpp (1: 1 probe), 400Vpp (10: 1 probe)Coupling Modes: DC / AC / GNDThe Horizontal Time Base Range: 10μs / Div - 50s / Div (1-2-5 progressive manner)Supply Voltage: DC 9VPCB Size: 117 * 76mm / 4.6 * 3inScreen Size: 52 * 40mm / 2 * 1.57inPackage Size: 18 * 12.5 * 3cm / 7.08 * 4.92 * 1.18inPackage Weight: 119g / 4.21ozPackage List:1 x DSO138 DIY Digital Oscilloscope Kit1 x Probe3 x User Manual (English)
