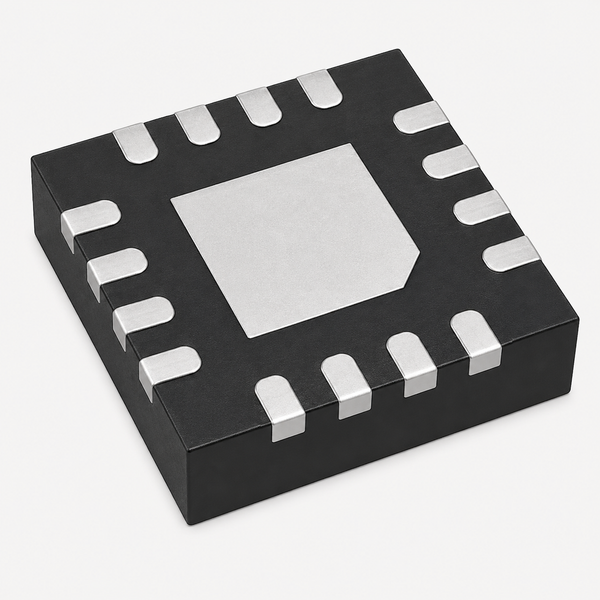

BQ24075RGTR TI Battery Charger IC - QFN-16 Package

BQ24075RGTR Battery Charger IC is a highly integrated 1.5A single-cell Li-Ion/Li-Polymer battery charger and power-path management IC from Texas Instruments. It is designed for USB-powered and adapter-powered portable devices, providing simultaneous battery charging and system power management. The IC features dynamic power path management (DPPM), programmable charging current, USB-compliant input current limiting, battery temperature monitoring, safety timers, and comprehensive protection features. The BQ24075 variant includes a SYSOFF function for battery disconnect and a regulated 5.5V system output.BQ24075RGTR Battery Charger IC DatasheetFeatures:USB-Compliant Single-Cell Li-Ion/Li-Polymer Battery ChargerIntegrated Power Path Management (DPPM)Supports USB and AC Adapter InputsProgrammable Charging Current up to 1.5AProgrammable Input Current Limit5.5V Regulated System OutputBattery Disconnect Function (SYSOFF)Dynamic Power Path Management (DPPM)Input Dynamic Power Management (VIN-DPM)Three-Phase Charging (Pre-charge, Constant Current, Constant Voltage)Programmable Safety TimersIntegrated Thermal RegulationBattery Temperature Monitoring (NTC Input)Automatic Recharge FunctionCharge Status and Power Good OutputsReverse Current ProtectionInput Overvoltage ProtectionShort-Circuit ProtectionThermal Shutdown ProtectionSmall QFN-16 PackageRoHS CompliantSpecifications:ParameterValueProduct TypeSingle-Cell Li-Ion Battery Charger ICPart NumberBQ24075RGTRPackageQFN-16 (RGT)Battery ChemistryLi-Ion / Li-PolymerInput Voltage Range4.35V – 6.4V (Operating)Maximum Input Voltage28VRegulated System Output5.5VBattery Regulation Voltage4.20V ±1%Maximum Charge Current1.5AInput Current Limit100mA, 500mA or Programmable up to 1.5ACharging AlgorithmPre-charge / CC / CVFast Charge CurrentProgrammable (300mA – 1.5A)Pre-charge Threshold3.0V (Typ.)Recharge Threshold100mV Below Regulation VoltageStandby Current50µA (Typ.)Sleep Current6.5µA (Typ.)Operating Temperature-40°C to +125°CMounting TypeSurface MountPackage Size3mm × 3mmRoHS ComplianceYes Pin Configuration:PinNameDescription1TSBattery Temperature Sense Input2BATBattery Connection3BATBattery Connection4CECharge Enable (Active Low)5EN2Input Current Selection6EN1Input Current Selection7PGOODPower Good Output8VSSGround9CHGCharge Status Output10OUTSystem Output11OUTSystem Output12ILIMInput Current Limit Programming13INPower Input14TMRSafety Timer Programming15SYSOFFBattery Disconnect / System Off16ISETCharge Current Programming Also Check These Out:AN7112 Audio Power Amplifier ICTDA2822M Amplifier ICHT12D (RF Decoder) ICPackage Includes:1 × BQ24075RGTR Battery Charger IC - QFN-16 Package
