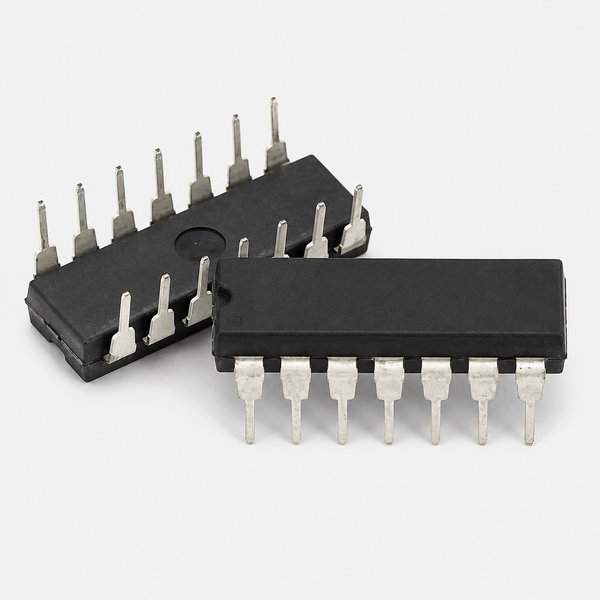

SN74HC393N Texas Instruments Falling Edge Binary Counter Divider IC - DIP-14 Package

SN74HC393N Texas Instruments Falling Edge Binary Counters Dividers IC - DIP-14 Package is a Texas Instruments dual 4-bit binary counter IC containing two independent 4-bit counters with individual clock and clear inputs. It uses negative-edge-triggered counting, provides asynchronous direct clear for each counter, and can be used for binary counting and frequency division applications. The device operates from a 2V to 6V supply and is housed in a 14-pin PDIP through-hole package.Features:Texas Instruments SN74HC393N binary counter ICDual independent 4-bit binary countersNegative-edge / falling-edge triggered clock inputsIndividual clock input for each counterDirect asynchronous clear for each counterBinary counting operationFrequency division capabilityWide 2V to 6V operating supply rangeTypical propagation delay of 13 nsLow maximum supply current of 80 µA±4 mA output drive at 5VLow maximum input current of 1 µAThrough-hole PDIP-14 packageSpecifications:SpecificationValueManufacturerTexas InstrumentsPart NumberSN74HC393NLogic Family74HCFunctionDual 4-Bit Binary CounterNumber of Counter Elements2Bits per Counter4Trigger TypeNegative EdgeCounting DirectionUpReset TypeAsynchronous ClearClock Inputs2Supply Voltage2V to 6VMaximum Count Rate36 MHzTypical Propagation Delay13 nsMaximum Supply Current80 µAMaximum Input Current1 µAOutput Drive at 5V±4 mAOperating Temperature-40°C to +85°CMounting TypeThrough HolePackagePDIP-14Number of Pins14Package Width7.62 mmPackagingTubePin Diagram:-Also Check These Products:-AN7112 Audio Power Amplifier ICTDA2822M Amplifier ICHT12D (RF Decoder) ICPackage Includes:1 × SN74HC393N Texas Instruments Falling Edge Binary Counters Dividers IC - DIP-14 Package

INR 135 · In stock
