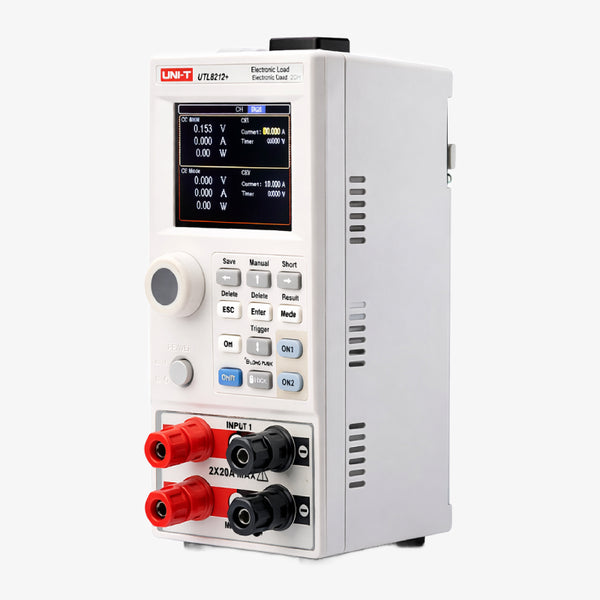

UNI-T UTL8212+ Electronic load - Dual Channel

UNI-T UTL8212+ Dual-Channel Electronic Load is a dual-channel DC electronic load instrument designed for precision testing and evaluation of power supplies, batteries, adapters, and other DC power sources, offering up to 150V and 20A per channel with 2×200W total power, high-resolution measurements (1 mV/1 mA), dynamic testing up to 5 kHz, versatile load control, and reliable digital connectivity via RS232 or optional RS485 for electronics labs, R&D, production testing, and maintenance.UNI-T UTL8212+ DATASHEETFeatures:Dual independent load channels for simultaneous testing150V / 20A per channel with 200W power capacity eachHigh resolution 1 mV/1 mA for precise measurementHigh dynamic frequency up to 5 kHzWide current slew rate 0.04 A/ms ~ 0.2 A/μsCompact ¼ 4U bench-friendly sizeRS232 connectivity with optional RS485 interfaceSpecifications:Product Type: Electronic LoadModel: UTL8212+Rated Voltage: 150V DCRated Current: 20A per channelTotal Power: 2×200WResolution: 1 mV / 1 mADynamic Frequency: Up to 5 kHzCurrent Slew Rate: 0.04 A/ms ~ 0.2 A/μsConnectivity: RS232, optional RS485Operating Temperature: As per manufacturer specificationApplications: Power supply testing, battery evaluation, adapter/load characterization, DC source lab testing, electronics R&D and maintenancePackage Includes:1 × UNI-T UTL8212+ Dual-Channel Electronic Load
