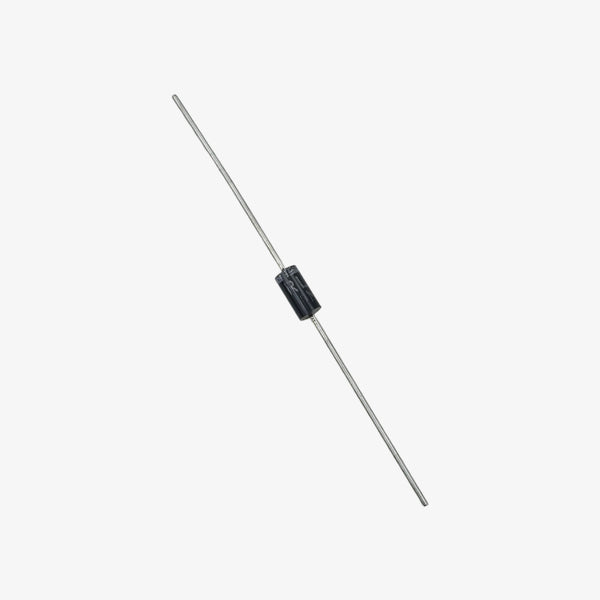

RL207 General Purpose Silicon Rectifier Diode 2A

The RL207 General Purpose Silicon Rectifier Diode 2A is designed for dependable AC to DC rectification in general power applications. Its molded DO-15 body ensures consistent thermal stability under varied load conditions. Ideal for adapters, chargers, and low frequency rectifier circuits.CLICK HERE FOR DATASHEETFeatures:Provides strong 2A rectification for medium-power conversion tasksMaintains stable conduction with controlled forward voltage behaviorConstructed with a durable DO-15 body for improved thermal reliabilityEngineered with flame-retardant materials for enhanced operational safetySpecifications:Maximum Peak Reverse Voltage (VRRM): 1000 VMaximum RMS Voltage: 700 VMaximum DC Blocking Voltage: 1000 VAverage Forward Rectified Current (IO): 2.0 APeak Forward Surge Current (IFSM): 70 AForward Voltage at 2A (VF): 1.0 VPeak Reverse Current at 25°C (IR): 5 µAPeak Reverse Current at 100°C (IR): 50 µATypical Junction Capacitance: 20 pFThermal Resistance (RθJA): 40 °C/WOperating Temperature Range: -65°C to +125°CPackage Type: DO-15 molded plasticPacking Qty: 3000Package Includes:1 × RL207 General Purpose Silicon Rectifier Diode 2A

INR 3 · In stock
