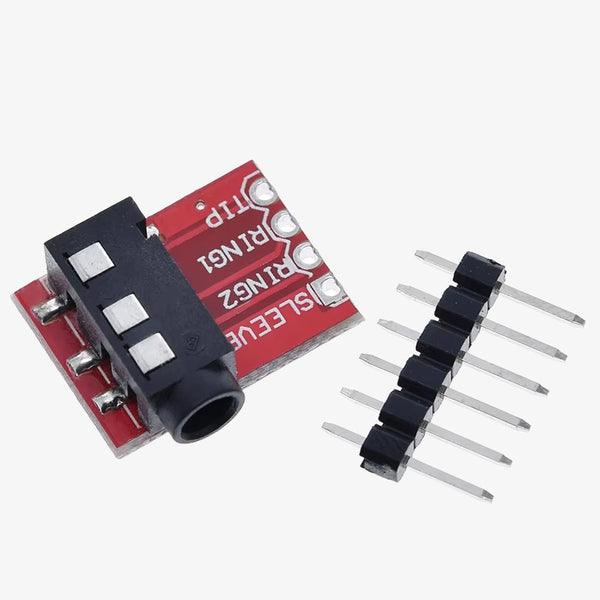

CJMCU-TRRS 3.5mm Jack AV Stereo Module

The CJMCU-TRRS 3.5mm Jack AV Stereo Module is a compact breakout board designed for audio interfacing via a 4-pole TRRS (Tip-Ring-Ring-Sleeve) connector. This module separates the signals into Left Audio, Right Audio, Microphone, and Ground, making it ideal for applications involving AV communication, audio playback, mobile headset jacks, and Raspberry Pi-based AV projects. Its compact form and easy-to-use pinout make it perfect for prototyping and DIY audio/video electronics.Features of CJMCU-TRRS 3.5mm Jack AV Stereo Module:Breakout module for 4-pole 3.5mm TRRS jacksAccess to Left Audio, Right Audio, Video/Mic, and GroundCompatible with audio and video applications, including Raspberry Pi and smartphonesSimple, compact design for breadboard or PCB integrationGreat for stereo output and microphone or composite video input/output projectsSpecifications of CJMCU-TRRS 3.5mm Jack AV Stereo Module:Connector Type: 3.5mm TRRS (Tip-Ring-Ring-Sleeve)Signal Outputs: Left Audio, Right Audio, Video/Mic, GroundVoltage Compatibility: 3.3V to 5V logic systemsMounting Type: Through-hole/Solderable padsBoard Dimensions: Approx. 15mm x 15mmIdeal for: Audio-visual signal breakout, Raspberry Pi, Arduino, DIY audio projectsPackage Includes:1 × CJMCU-TRRS 3.5mm Jack AV Stereo Module

INR 21 · In stock
