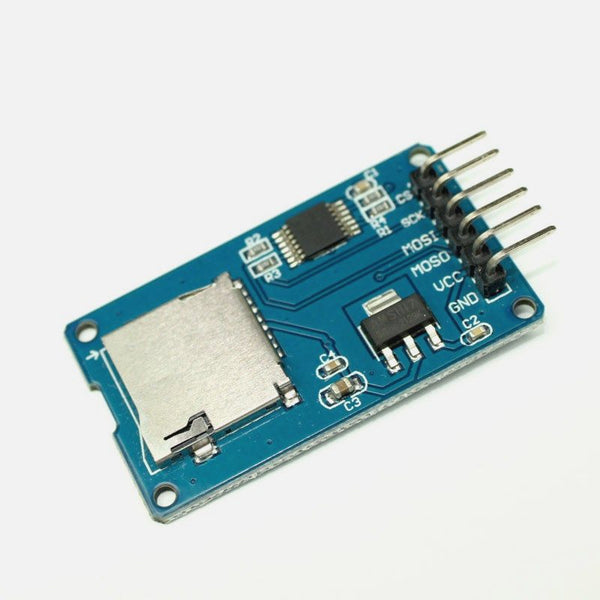

Micro SD Card Reader - Adapter Module

SD cards are often used along with microcontrollers to store and retrieve the huge amount of data, mostly in data logging or visualization applications. This SD card module will help us to easily Interface an SD card with Microcontrollers. The micro SD card module operates on 4.5V to 5.5V and uses an on-board regulator to regulate 3.3V. The communication between the SD card and Microcontroller takes place through the SPI standard Communication Protocol.The micro SD card module contains two main components i.e. Voltage Regulator and Level Shifter. The on-board ultra-low dropout regulator is used to convert 5V to 3.3V and Level Shifter is used to converts the interface logic from 3.3V-5V to 3.3V. Features & SpecificationsInput Voltage: 3.3V/5VOn-board 3.3V voltage regulator circuitCurrent: 0.2~200mASupports Micro SD up to 2GBMicro SDHC up to 32GBPinouts: GND, VCC, MISO, MOSI, SCK, CS; SPI standard interface4 mounting holes with 2.2mm diameterOnly use 4 I/O pins on the ArduinoSize: 42mm x 25mm x 5mm Package Includes1×Micro SD Card Adapter Module Additional ResourcesMicro SD Card Tutorial

INR 35 · Out of stock
