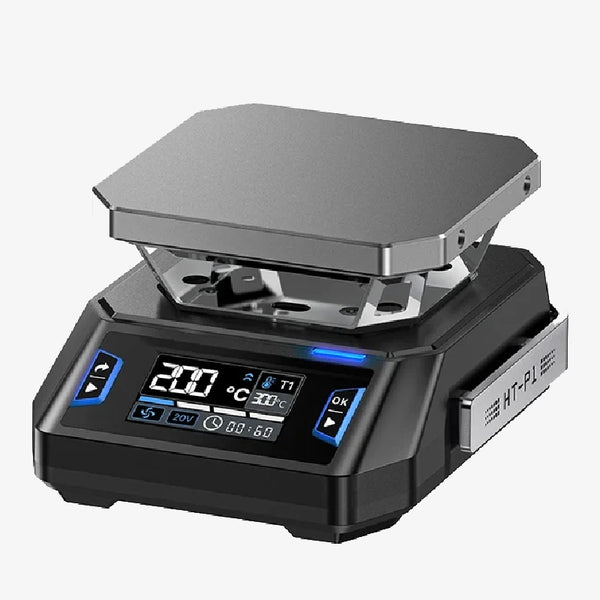

FNIRSI® HT-P1A Mini Hot Plate Dual Mode Reflow & Heating Station, DC/USB-C PD

FNIRSI® HT-P1A Mini Hot Plate Dual Mode Reflow & Heating Station, DC/USB-C PD is a compact portable heating and reflow station designed for PCB preheating, SMD rework, component heating, soldering, and small-board reflow applications. It provides up to 150W of adjustable heating power, a 100°C to 350°C temperature range, PID temperature control with ±3°C stability, and a 50 × 50mm heating surface. The HT-P1 supports both DC and USB Type-C PD power input, features constant-temperature heating and simulated reflow modes, and includes a 1.44-inch color display for real-time monitoring of temperature, voltage, power, heating time, and system status. FNIRSI® HT-P1A Mini Hot Plate Dual Mode Reflow & Heating Station ManualFeatures:150W high-power heating system for rapid thermal response.Adjustable heating power from 30W to 150W.Dual power input through DC and USB Type-C PD.Supports DC input from 12V to 28V.Supports USB Type-C PD input.HT-P1B variant supports PD 2.0, PD 3.0, and PD 3.1 protocols.Wide temperature adjustment range of 100°C to 350°C.Intelligent PID temperature control.Temperature stability of approximately ±3°C.Dual working modes: constant-temperature heating and simulated reflow soldering.50 × 50mm heating surface suitable for small PCBs and SMD components.Three programmable temperature presets: T1, T2, and T3.1.44-inch full-color display.Real-time display of actual temperature and target temperature.Displays input voltage, heating power, heating time, and system status.Adjustable power control for compatibility with different power adapters.Built-in over-temperature protection.Built-in low-voltage warning and protection.Long-time heating protection.Adjustable tilt detection from 20° to 50°.Automatic protection when abnormal tilt is detected.USB Type-C firmware upgrade support.Adjustable display brightness and volume.Selectable temperature units.Adjustable automatic exit timing.Compact and lightweight portable design.Detachable structure for easier maintenance and portability.Heat-resistant silicone cover included.Suitable for PCB preheating, SMD rework, soldering, desoldering, and component heating.Basic Specifications:ParameterValueBrandFNIRSI®ModelHT-P1A / HT-P1BProduct TypeMini Hot Plate / Reflow & Heating StationHeating TypeElectric HeatingWorking ModesConstant Heating / ReflowMaximum Power150WAdjustable Power30W–150WTemperature Range100°C–350°CTemperature Range (°F)212°F–662°FTemperature Stability±3°CHeating Area50 × 50mmDisplay TypeFull-Color ScreenDisplay Size1.44 InchWeightApprox. 157gDimensionsApprox. 68.8 × 81.8 × 44.5mmTilt Detection20°–50° AdjustableFirmware UpgradeSupportedOperating Environment-5°C to 40°COperating Humidity≤80% RHPower Specifications:ParameterValuePower InputDC / USB Type-C PDDC Input Voltage12V–28V DCMaximum Input Power150WUSB-C PD PowerUp to 150WPD ProtocolPD2.0 / PD3.0 / PD3.1*Standby PowerApprox. 1.6WDC Connector5.5 × 2.1mm*Power AdjustmentSupportedSimultaneous DC + USB-C InputNot SupportedHeating & Reflow Specifications:ParameterValueHeating Power30W–150W AdjustableTemperature Range100°C–350°CTemperature Stability±3°CHeating Surface50 × 50mmTemperature ControlPIDHeating ModeConstant TemperatureReflow ModeSimulated ReflowTemperature PresetsT1 / T2 / T3Preset Memory3 GroupsHeating Time DisplaySupportedReal-Time Temperature MonitoringSupportedTarget Temperature DisplaySupportedPower MonitoringSupportedDisplay & Smart Functions:ParameterValueDisplay TypeFull-Color DisplayDisplay Size1.44 InchActual Temperature DisplaySupportedTarget Temperature DisplaySupportedInput Voltage DisplaySupportedPower DisplaySupportedHeating Time DisplaySupportedSystem Status DisplaySupportedBrightness AdjustmentSupportedVolume AdjustmentSupportedTemperature Unit SelectionSupportedAuto Exit SettingSupportedFirmware UpdateSupportedTemperature Presets3Safety & Protection Specifications:ParameterValueOver-Temperature ProtectionSupportedLow-Voltage ProtectionSupportedLow-Voltage WarningSupportedLong-Time Heating ProtectionSupportedTilt ProtectionSupportedTilt Detection Range20°–50°Abnormal Tilt DetectionSupportedPower Adaptation ControlSupportedThermal ProtectionSupportedDesign Specifications:ParameterValueDesignPortable Mini Hot PlateHeating Surface50 × 50mmConstructionCompact Detachable DesignStandIntegrated SupportCoverHeat-Resistant Silicone CoverCoolingPassive Heat DissipationWeightApprox. 157gDimensionsApprox. 68.8 × 81.8 × 44.5mmApplication TypePCB Rework / SMD Reflow / Component HeatingExplore the FNIRSI Collection featuring advanced digital multimeters, oscilloscopes, signal generators, laser rangefinders, thermal cameras, USB testers, and precision electronic test equipment. Ideal for electronics engineers, technicians, makers, DIY enthusiasts, troubleshooting, circuit analysis, industrial maintenance, and professional measurement applications.Also Check These Products:-FNIRSI HRM-10 Battery Voltage Internal Resistance TesterFNIRSI LCR-P1 Multifunction Transistor Capacitor TesterFNIRSI LCR-ST1 Mini Smart Tweezer LCR SMD ESR TesterFNIRSI DMC-100 DC AC Current Voltage Digital Clamp MultimeterFNIRSI DMT-99 Intelligent Color Screen Digital MultiMeterPackage Includes:1 x FNIRSI® HT-P1A Mini Hot Plate1 x Heat-Resistant Silicone Cover1 x Transparent Protective Cover1 x User Manual1 x Storage Case
