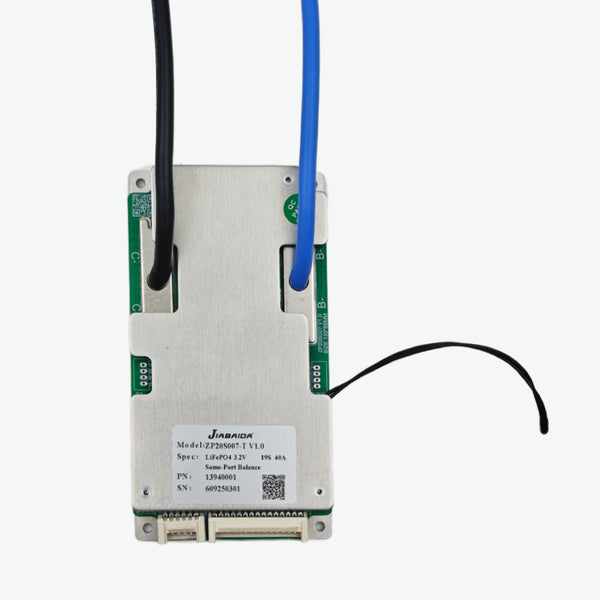

Jiabaida (JBD) LiFePo4 19S 40A Battery Management System - BMS Protection Board

Jiabaida (JBD) LiFePo4 19S 40A is a reliable and intelligent Battery Management System (BMS) built on the ZP20S007 hardware platform, designed specifically for 19-cell LiFePo4 battery packs. It supports a continuous discharge of 40A and includes essential safety features like overcharge, over-discharge, short-circuit, and overcurrent protection. The board also integrates passive cell balancing to maintain battery health over time, making it ideal for applications such as solar storage systems, e-bikes, and backup power units.Jiabaida (JBD) LiFePo4 19S 40A BMS Features:40A continuous discharge for moderate-to-high power systemsIntelligent passive balancing for cell longevityComprehensive protection: over-voltage, under-voltage, overcurrent, short circuitZP20S007 hardware ensures accurate and efficient battery controlCompact and suitable for LiFePo4-based energy systemsJiabaida (JBD) LiFePo4 19S 40A BMS Specifications:SpecificationValueModelZP20S007Supported Cells19S (LiFePo4)Nominal Voltage (V)60.8VCharge Voltage (V)69.35VCharge Current (A)20AContinuous Discharge Current (A)40ABalance Current (mA)30 ±5Overcharge Detect Voltage (V)3.75 ±0.05Overcharge Release Voltage (V)3.55 ±0.05Over Discharge Detect Voltage (V)2.20 ±0.1Over Discharge Release Voltage (V)2.50 ±0.1Operating Temperature (°C)-20 to 70Dimensions (mm)120 x 65 x 14 Package Includes:1 x Jiabaida (JBD) LiFePo4 19S 40A Battery Management System - BMS Protection Board

Check price on store · Out of stock
