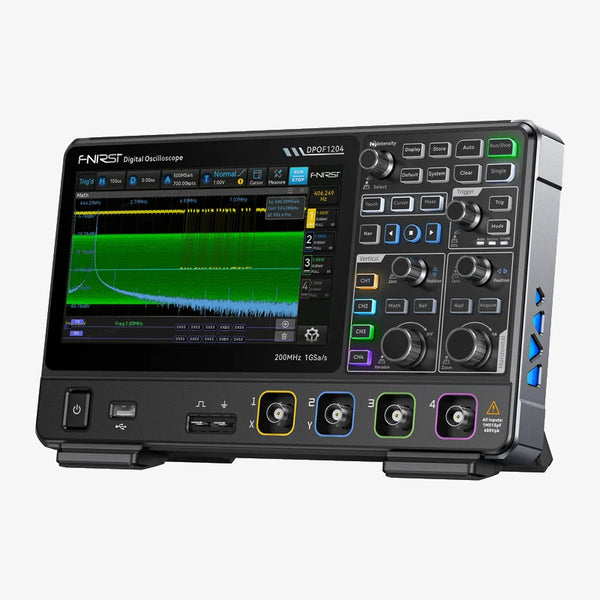

FNIRSI® DPOF1204 Analog 4CH 200MHz 1GSa/s Digital Phosphor Oscilloscope

FNIRSI® DPOF1204 4CH 200MHz 1GSa/s Digital Phosphor Oscilloscope is a high-performance four-channel digital phosphor oscilloscope designed for advanced electronics measurement, signal analysis, embedded-system debugging, and electrical diagnostics. It combines 200MHz bandwidth, up to 1GSa/s real-time sampling, 14Mpts memory depth, 450,000 wfms/s waveform capture, FFT analysis, serial protocol decoding, advanced triggering, and a 7-inch touchscreen display.FNIRSI® DPOF1204 Analog 4CH 200MHz 1GSa/s Digital Phosphor Oscilloscope DatasheetFeatures:4 independent analog channels200MHz analog bandwidthUp to 1GSa/s real-time sampling rateUp to 450,000 wfms/s waveform capture rateUp to 14Mpts memory depth70–90µVrms ultra-low noise performance500µV/div maximum sensitivity13+ hardware trigger modesI2C, SPI, UART, CAN and LIN protocol decodingUp to 1M-point FFT analysis38 automatic measurement parametersUp to 90,000 segmented history recordsPass/Fail testing function7-inch 800 × 480 touchscreen displayUSB Host, USB Device and LAN interfacesSCPI command and WebControl support Specifications:SpecificationValueBrandFNIRSIModelDPOF1204Product TypeDigital Phosphor OscilloscopeChannels4Analog Bandwidth200MHzMaximum Real-Time Sampling Rate1GSa/sSampling Rate per Channel500MSa/sMaximum Waveform Capture Rate450,000 wfms/sMaximum Memory Depth14MptsNon-Interleaved Memory Depth7MptsDisplay7-inch TouchscreenDisplay Resolution800 × 480Sensitivity500µV/divNoise Floor70–90µVrmsFFT AnalysisUp to 1M PointsAutomatic Measurements38History RecordsUp to 90,000 SegmentsTrigger TypesEdge, Slope, Pulse Width, Window, Runt, Interval, Dropout, Pattern, Video, SerialProtocol DecodingI2C, SPI, UART, CAN, LINInterfacesUSB Host, USB Device, LAN, Pass/Fail, Trigger OutProbes4 × 200MHz FOP-200B Passive ProbesWeight1036gExplore the FNIRSI Collection featuring advanced digital multimeters, oscilloscopes, signal generators, laser rangefinders, thermal cameras, USB testers, and precision electronic test equipment. Ideal for electronics engineers, technicians, makers, DIY enthusiasts, troubleshooting, circuit analysis, industrial maintenance, and professional measurement applications.Also Check These Products:-FNIRSI HRM-10 Battery Voltage Internal Resistance TesterFNIRSI LCR-P1 Multifunction Transistor Capacitor TesterFNIRSI LCR-ST1 Mini Smart Tweezer LCR SMD ESR TesterFNIRSI DMC-100 DC AC Current Voltage Digital Clamp MultimeterFNIRSI DMT-99 Intelligent Color Screen Digital MultiMeterPackage Includes:1 × FNIRSI® DPOF1204 Oscilloscope4 × 200MHz Passive Probes1 × Grounding Wire1 × Power Adapter1 × USB-A to USB-B Cable1 × User Guide
