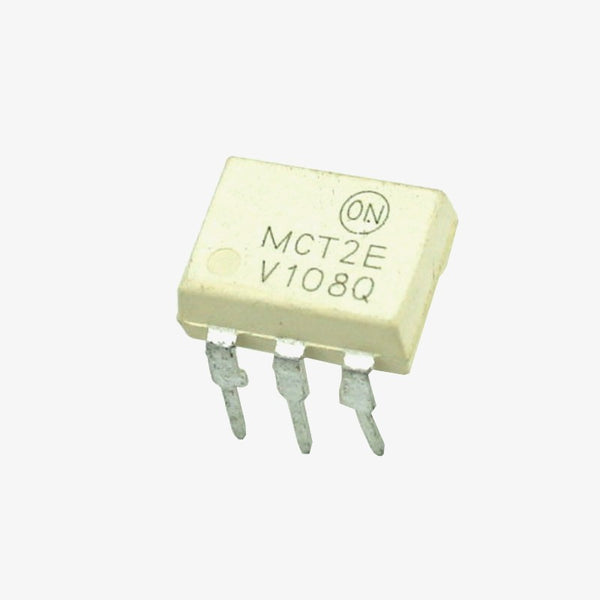

MCT2E Optocoupler/Phototransistor IC - DIP-6 Package

Optocoupler is an important component in electronics and here is MCT2E that is a hugely popular optocoupler available in quartz components with such great price. As like other optocouplers, it has an infrared emitting diode that optically controls a phototransistor. The forward voltage of the diode is typically 1.25V at 20mA of forward current. It is packaged in a 6-pin DIP Package.Since it is the MCT2E, it has the CTR value of CTR 60 (> 20) % at 5mA forward current with 10V of collector-emitter voltage. The phototransistor supports a maximum of 50mA collector current.MCT2E pinout: MCT2E SpecificationsSpecification:Package/Case : DIP-6Mounting Type : THCTR : 60% at IF=10mA ,VCE=10VOperating Temperature Range (°C) : -55 to 100Maximum Collector Emitter Voltage : 70 VMaximum Collector Current : 50 mAIsolation Voltage : 5300 VrmsVf - Forward Voltage : 1.25 VVr - Reverse Voltage : 6 VPd - Power Dissipation : 200 mWNumber of Channels : 1 ChannelMCT2E Applications:SMPSIsolated Data inputMeasurementsCommunication between two different voltage level circuitsHazardous interfaces where manual interventions requiredHigh power Relay drivingMCT2E Dimension and footprint:Package Contains1x MCT2E Optocoupler IC

INR 14 · In stock
