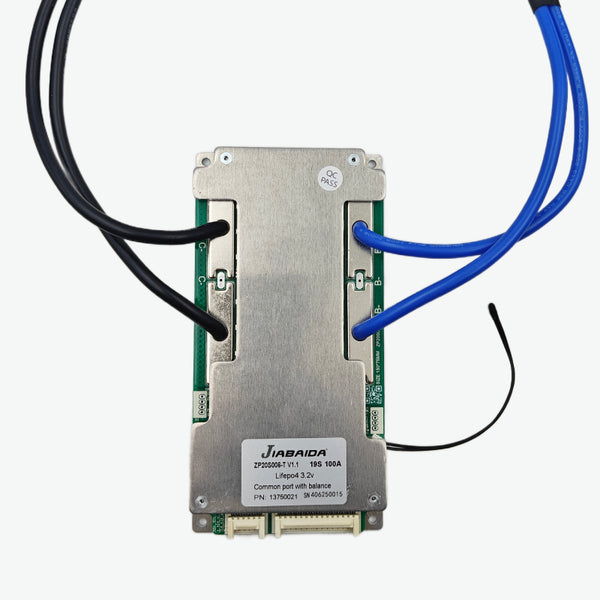

Jiabaida (JBD) LiFePo4 19S 60.8V 100A Battery Management System - BMS Protection Board

Jiabaida (JBD) LiFePo4 19S 60.8V 100A BMS is a high-performance Battery Management System designed using the TP20S001 hardware platform for large-scale LiFePo4 battery packs. This BMS supports advanced features such as smart communication, precise cell balancing, and comprehensive protection mechanisms. With a continuous discharge capacity of 100A, it is ideal for high-load applications including solar energy storage, electric vehicles, and industrial-grade battery systems.Jiabaida (JBD) LiFePo4 19S 60.8V 100A BMS Features:Advanced protection against overcharge, over-discharge, overcurrent, and short circuitsSmart BMS functionality with UART/CAN/RS485 communication supportPassive cell balancing for optimized pack health and longevityTP20S001 platform ensures reliability and accuracySuitable for high-power LiFePo4-based applicationsJiabaida (JBD) LiFePo4 19S 60.8V 100A BMS Specification:SpecificationValueModelTP20S001Supported Cells19S (LiFePo4)Nominal Voltage (V)60.8Charge Voltage (V)68.4Charge Current (A)50Continuous Discharge (A)100Balance Current (mA)~30Overcharge Detect Voltage (V)3.75 ±0.05Overcharge Release Voltage (V)3.55 ±0.05Over Discharge Detect Voltage (V)2.2 ±0.1Over Discharge Release Voltage (V)2.5 ±0.1Communication InterfaceUART / CAN / RS485Operating Temperature (°C)-20 to 70Dimensions (mm)128 x 63 x 15 Package Includes:1 x Jiabaida (JBD) LiFePo4 19S 60.8V 100A Battery Management System - BMS Protection Board
