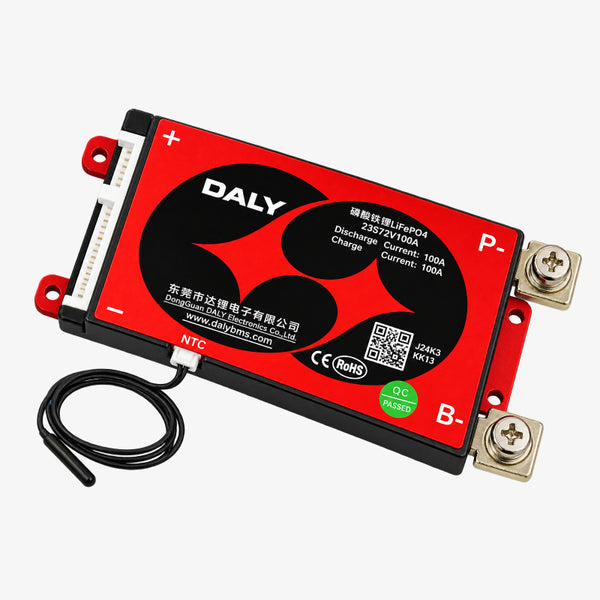

DALY LiFePo4 23S 72V 100A Waterproof Battery Management System - BMS Protection Board

DALY LiFePo4 23S 72V 100A is a Lithium Battery Protection Board (PCM BMS) designed for balance charging in LiFePo4 battery packs. It employs an A-level protective integrated circuit (IC) that ensures robust safety and efficient performance. Its high load capability with a 100A continuous discharge current makes it an ideal solution for high-demand battery applications. The board incorporates a power MOSFET with high voltage resistance and low internal resistance, while an integrated heat sink significantly aids in cooling.DALY LiFePo4 23S 72V 100A Waterproof Battery BMS Features:State of charge calculations.Cell over-voltage and under-voltage protection.Intelligent battery balancing (passive).Fully sealed waterproof technology with waterproof, dustproof, shockproof, anti-squeezing, and other protective functions.DALY LiFePo4 23S 72V 100A Waterproof Battery BMS Specification:SpecificationValueModelLiFePo4 23S 72V 100ACharge Voltage (V)83.95Charge Current (A)50Balance Current (mA)30±5Balance Detect Voltage (V)3.50Working Current (uA)500Overcharge Detect Voltage (V)3.70±0.05Overcharge Release Voltage (V)3.65±0.05Over Discharge Detect (V)2.2±0.1Over Discharge Release (V)2.5±0.1Working Temperature Range (°C)-20 to 70Cable Size (AWG)7Length (mm)166Width (mm)65Height (mm)24 Explore wide range of DALY Smart BMS >Package Includes:1 x DALY LiFePo4 23S 72V 100A Waterproof Battery Management System - BMS Protection Board
