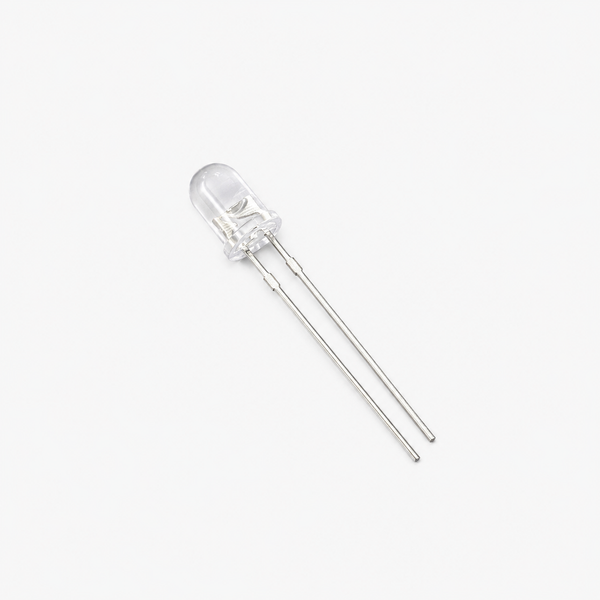

L51RLPT1C-S61 940nm 5mm Infrared (IR) Transmitter LED

L51RLPT1C-S61 940nm 5mm Infrared (IR) Transmitter LED is a high-performance 5mm infrared emitting diode designed for remote control systems, IR communication, object detection, optical sensors, security equipment, proximity sensing, and industrial automation. Featuring a 940nm peak emission wavelength, high radiant intensity, low forward voltage, and excellent reliability, it is suitable for both continuous and high pulse current applications.L51RLPT1C-S61 940nm 5mm Infrared (IR) Transmitter LED Datasheet Features:940nm Peak Infrared Emission Wavelength5mm Through-Hole PackageHigh Radiant Power and Radiant IntensityLow Forward VoltageSuitable for High Pulse Current OperationGaAlAs/GaAs Chip TechnologyWater Clear LensLong Operating LifeHigh ReliabilityLow Reverse CurrentPb-Free ConstructionSpecifications:ParameterValueProduct TypeInfrared Transmitter LEDModelL51RLPT1C-S61Package Size5mm Through HoleLED TypeInfrared Emitting DiodePeak Emission Wavelength940nmLens ColorWater ClearChip MaterialGaAlAs/GaAsViewing Angle20°Forward Voltage (Typ.)1.3VForward Voltage (Max.)1.8VForward Current100mA MaxPeak Forward Current1000mA (Pulse)Reverse Voltage5VReverse Current10µA MaxRadiant Intensity60mW/sr @ 100mAPower Dissipation180mWOperating Temperature-40°C to +85°CStorage Temperature-40°C to +100°CLead Soldering Temperature260°C for 5 SecondsMounting TypeThrough Hole (THT)ComplianceRoHSAlso Check These Out:5mm IR Transmitter LED3mm IR Transmitter LEDTSOP38238 IR Receiver Diode (38kHz)Photodiode - 3mm IR Receiver LEDPackage Includes:1 x L51RLPT1C-S61 940nm 5mm Infrared (IR) Transmitter LED

INR 4.5 · Out of stock
