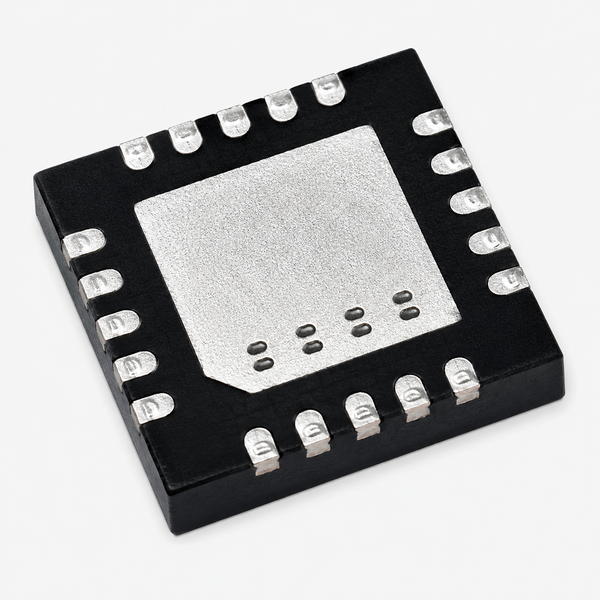

CP2102N Silicon Labs USB to UART Converter IC - QFN-20 Package

CP2102N-A02-GQFN20R USB to UART USB 2.0 Converter IC - QFN-20 Package (RoHS) is a highly integrated USB-to-UART bridge controller that provides a simple and reliable interface between USB and UART devices. Designed for USB 2.0 Full-Speed communication, it eliminates the need for external USB components, crystals, and complex firmware development. Featuring data transfer rates up to 3 Mbaud, integrated USB transceiver, and royalty-free Virtual COM Port drivers, it is ideal for embedded systems, industrial automation, POS terminals, USB dongles, medical equipment, and data logging applications.CP2102N USB to UART Converter IC - DatasheetFeatures:USB 2.0 Full-Speed USB to UART BridgeNo External Crystal RequiredIntegrated USB TransceiverSupports Data Rates up to 3 MbaudIntegrated 48MHz OscillatorBuilt-in Voltage RegulatorUSB Battery Charger Detection SupportRemote Wakeup Function512-Byte TX & RX BuffersSupports Hardware & Software Flow ControlVirtual COM Port Drivers for Windows, Linux & macOSRoHS CompliantSpecifications:ParameterValueProduct TypeUSB to UART Bridge ICPart NumberCP2102N-A02-GQFN20RUSB StandardUSB 2.0 Full-SpeedPackageQFN-20Supply Voltage3.0V–5.25VUART Baud Rate300bps–3MbpsOscillatorInternal 48MHzTX Buffer512 BytesRX Buffer512 BytesConfiguration Memory960 BytesGPIO4Operating Temperature-40°C to +85°CRoHS ComplianceYesPin Configuration:PinFunction1VBUS2D+3D-4GND5VREGIN6VDD7RSTb8TXD9RXD10–20UART Control, GPIO, VIO & Power Pins*Also Check These Out:AN7112 Audio Power Amplifier ICTDA2822M Amplifier ICHT12D (RF Decoder) ICPackage Includes:1 x CP2102N A02 GQFN20R USB to UART USB 2.0 Converter IC - QFN-20 Package (RoHS)

INR 184 · In stock
