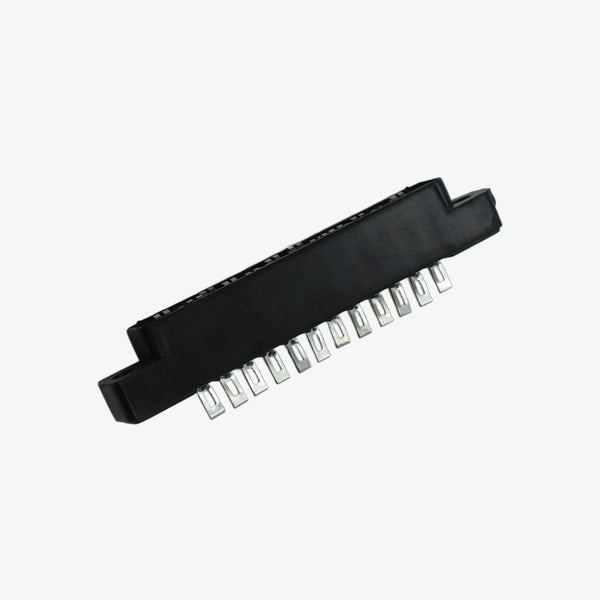

12 Contact Card Edge Connector (Black) - 3.96mm Pitch 5A 600V AC

The 12 Contact Card Edge Connector is a precision-engineered interface component designed for secure PCB-to-board connections. Built with durable materials and bifurcated bellows contacts, it ensures stable conductivity, long service life, and excellent performance across a wide temperature range. Ideal for industrial controls, instrumentation, and electronic assemblies requiring dependable electrical connections.Features:12-contact configuration with bifurcated bellows design for reliable electrical connectionSolder/PMT type terminals for easy PCB integrationGold/tin-plated phosphor bronze contacts for superior conductivity and corrosion resistanceDurable DAP/Bakelite insulator ensures high thermal and electrical strengthRated for 500 mating cycles, ensuring long-term stabilityRoHS compliant and UL-approved for safety and performanceSpecifications:Model: 12 Contact Card Edge ConnectorContact Type: Bifurcated BellowsContact Terminal: Solder / PMTContact Pitch: 3.96mm (0.156 inch)Durability: 500 CyclesInsulator Material: DAP / BakeliteContact Material: Phosphor BronzeContact Finish: Gold / TinOperating Temperature Range: -65°C to +125°CWorking Voltage: 600V RMSVoltage Proof: 1800V RMSCurrent Rating: 5AContact Resistance: ≤10 mΩ (max)Insulation Resistance: ≥5000 MΩ (min)Compliance: RoHS CertifiedApproval: E302677Package Includes:1 × 12 Contact Card Edge Connector – 3.96mm Pitch

INR 67 · In stock
