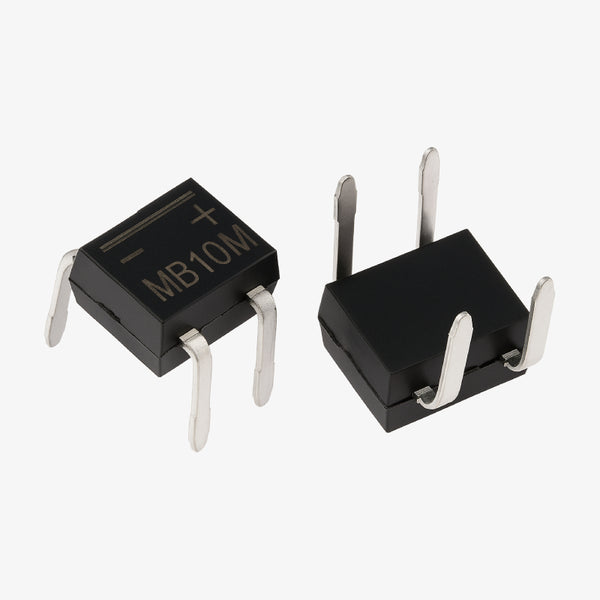

MB10M Bridge Rectifier IC - DIP-4 Package

The MB10M Bridge Rectifier IC is a compact, high-efficiency full-wave bridge rectifier designed for AC to DC conversion in low-power electronic circuits. It is built in a DIP-4 package that simplifies PCB mounting and integration into various projects. This IC is ideal for power supplies, chargers, LED drivers, and other AC-to-DC applications where compact size and reliability are crucial.It offers high surge current capability, low forward voltage drop, and dependable rectification performance in a small footprint, making it suitable for both DIY electronics and industrial designs.Features of MB10M Bridge Rectifier IC:Full-wave bridge rectifier in DIP-4 packageHandles up to 1A of continuous forward currentPeak reverse voltage up to 1000VLow forward voltage drop for efficient power conversionHigh surge current capability up to 30AReliable AC-to-DC conversion for compact power supply designsSimple PCB mounting with through-hole DIP-4 configurationSpecifications of MB10M Bridge Rectifier IC:Model: MB10MMaximum Average Forward Current (Io): 1AMaximum Reverse Voltage (Vr): 1000VPeak Surge Forward Current (Ifsm): 30AForward Voltage Drop (Vf): ≤ 1.1V (typical)Operating Temperature Range: -55°C to +150°CPackage Type: DIP-4Package Pitch: 5.08mmPackage Includes:1 × MB10M Bridge Rectifier IC - DIP-4 Package

INR 4 · In stock
