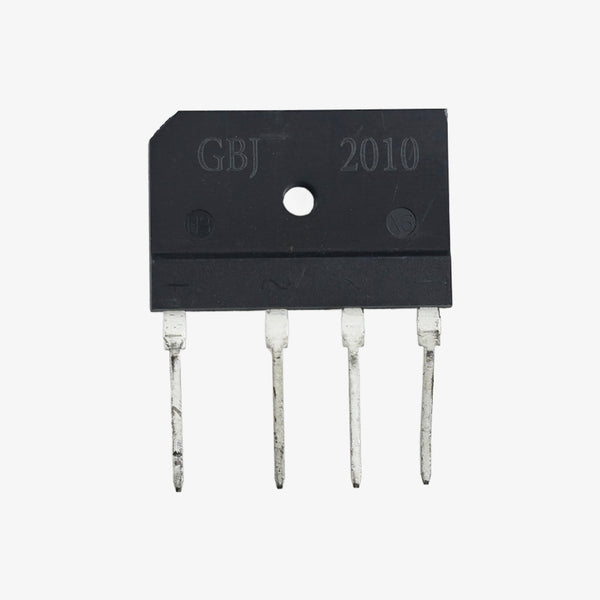

GBJ2010 20A 1000V Single Phase Bridge Rectifier Module - Inline 4-Pin Package

The GBJ2010 Bridge Rectifier 20A is a high-current through-hole rectifier designed for AC to DC conversion in demanding power applications. Built with a glass-passivated die and UL 94V-0 flame-rated molded plastic body, it ensures excellent surge capability and thermal reliability. Ideal for use in power supplies, inverters, motor drives, and UPS systems.Features:High forward current capacity up to 20ASurge overload tolerance up to 240A peakGlass-passivated die for enhanced stabilityLow reverse leakage and forward voltage dropHigh dielectric strength of 1500VRMS with RoHS complianceSpecifications:Average Forward Current (IF(AV)): 20A (TC = 110°C)Peak Repetitive Reverse Voltage (VRRM): 1000VWorking Peak Reverse Voltage (VRWM): 1000VDC Blocking Voltage (VR): 1000VRMS Reverse Voltage (VR(RMS)): 700VPeak Forward Surge Current (IFSM): 240A (8.3ms half-sine wave)Forward Voltage (VF): 1.05V at IF = 10AReverse Current (IR) at 25°C: 10µAReverse Current (IR) at 125°C: 500µAThermal Resistance Junction-to-Case (RθJC): 0.8°C/WTypical Junction Capacitance (Cj): 60pFOperating Junction Temperature (TJ): -55°C to +150°CStorage Temperature (TSTG): -55°C to +150°CPackage Includes:1 × GBJ2010 20A 1000V Single Phase Bridge Rectifier Module - Inline 4-Pin Package

INR 43 · In stock
