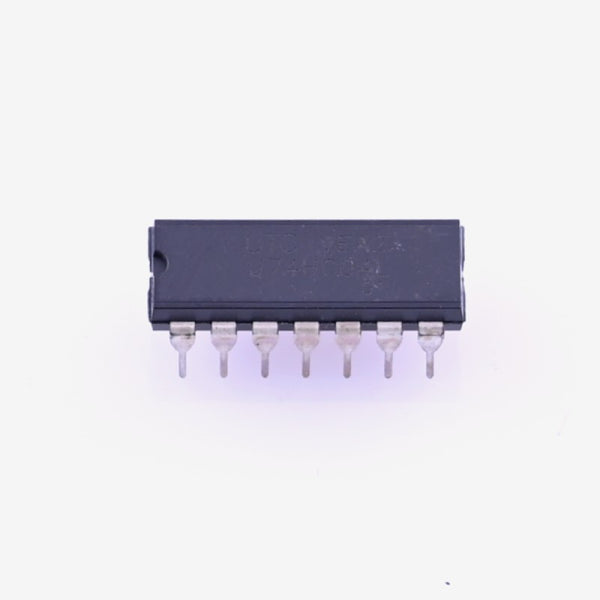

74HC04 Hex Schmitt Trigger Inverter IC - 14 Pin DIP Package

The 74HC04 is a Hex Inverter (NOT gate) IC. That is the IC has six NOT gates inside it and each gate has one input and one output pin. All six NOT gates are powered with a common rail, but can operate independently. It is a triple buffered inverter with high noise immunity and the ability to drive 10 LS-TTL loads. The 74HC logic family is functionally as well as pin-out compatible with the standard 74LS logic family.It has an operating voltage range from 2V to 6V and consumes only 20uA of current. When operating at 5V, the minimum high level input voltage is 3.15V and the maximum low level input voltage is 1.35V. 74HC04 inverter IC utilizes advanced silicon-gate CMOS technology to achieve operating speeds similar to LS-TTL gates with the low power consumption of standard CMOS integrated circuits. All inputs are protected from damage due to static discharge by internal diode clamps to VCC and ground. 74HC04 pinout:74HC04 features and specificationsFeatures: Six Independent Invert GatesStandard Pin ConfigurationAlso Available in SMD TypeOperating Temperature to 70oCHigh-Speed CMOS TypeSpecifications:Input Voltage - 2.0V - 6.0VPackage - TH - DIP14Type - NOT GateDevices - 6 GatesHigh Level Input (MIN) - 3.15VLow Level Input (MAX) - 1.35V74HC04 Applications:Cameras, Ethernet SwitchesAnalog ComputersBit encodingLogic devices74HC04 Dimension and footprint:Package Contains1x 74HC04
