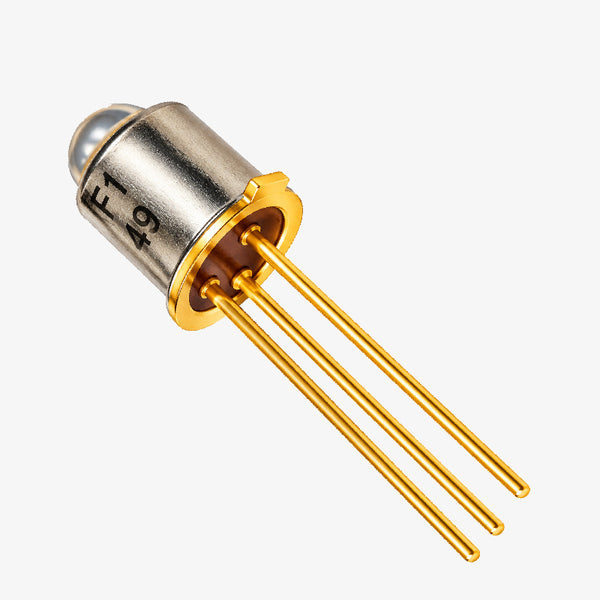

L14F1 Photodarlington

L14F1 Photodarlington is a hermetically sealed silicon photodarlington transistor housed in a narrow-angle TO-18 metal-can package. It is designed for optical detection applications and provides high sensitivity with an NPN phototransistor configuration.L14F1 Photodarlington DatasheetFeatures:Silicon photodarlington transistorHermetically sealed packageNarrow reception angleNPN polarityThrough-hole mountingTO-18 metal-can package940nm wavelength25V collector-emitter breakdown voltage25V collector-base breakdown voltage12V emitter-base breakdown voltage7.5mA maximum collector current±8° reception angle-65°C to +125°C operating temperature rangeSpecifications:SpecificationValueManufacturerFairchild SemiconductorPart NumberL14F1Product TypePhotodarlingtonTransistor TypeNPNMaterialSiliconPackageTO-18Mounting TypeThrough HoleNumber of Pins3Collector-Emitter Breakdown Voltage25VCollector-Base Breakdown Voltage25VEmitter-Base Breakdown Voltage12VMaximum Collector Current7.5mAPower Dissipation300mWWavelength940nmReception Angle±8°Operating Temperature-65°C to +125°CStorage Temperature-65°C to +150°CAlso Check These Products:-CMF13N65 CMOS N-Channel MOSFET - TO-220F DIP PackageP13NK60ZFP N-Channel MOSFET 600V 13A - TO-220 DIP PackageFS8205A Dual N-Channel Power MOSFET - TSSOP-8 SMD PackageIRF840 Power MOSFET - 8A - TO-220 PackagePackage Includes:1 × L14F1 Photodarlington

INR 242 · In stock
