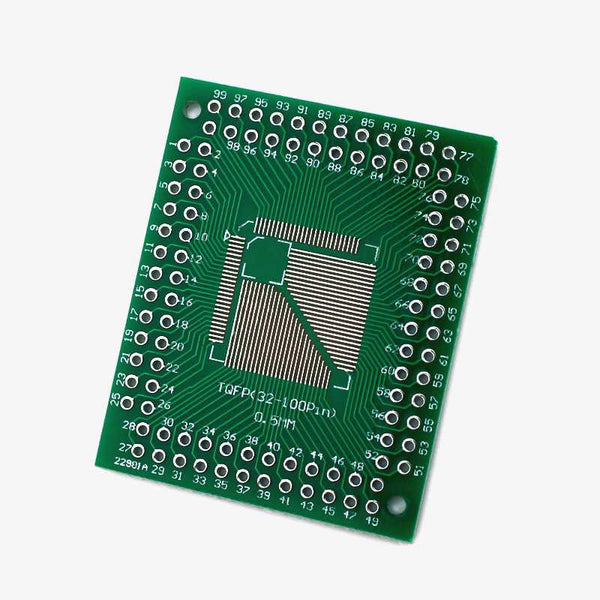

QFP/TQFP/LQFP/FQFP 32/44/64/80/100 LQF SMD to DIP Adapter PCB Board

When we develop a system, we go from concept to design to prototype to testing and then final product and in all of these prototyping and testing is the most important step as it irons out any flaws in your concept and remove the bugs. We do not make PCBs for testing purpose instead we use breadboard and breakout boards for the same. If we use QFP/TQFP/LQFP/FQFP SMD package which require PCB soldering to work, it will be a problem while prototyping and testing as we do not design PCB in this stage. This Dual Side LQF SMD package to DIP Package Adapter will help you out in this case. A side for pin pitch size 0.8mm, it can be used for most of the QFP, TQFP, LQFP, FQFP (compatible with 32pin to 64pin) to 2.54mm/0.1 inch DIP. B side for pin pitch size 0.5mm, it can be used for most of the QFP, TQFP, LQFP, FQFP (compatible with 32pin to 100pin) to 2.54mm/0.1 inch DIP. You can either use jumper wires or berg strips to make connections easily now.SpecificationsPin spacing of 0.8mm, suitable for the common QFP, TQFP package transfer into DIP8 uprightPin spacing of 0.5mm, suitable for common LQFP, FQFP encapsulation transfer into DIP8 uprightLow cost and easy to useHigh-quality PCB FR4 Grade with FPT Certified.Product DescriptionThis PCB has two sides one for 0.8mm, suitable for the common QFP, TQFP package and other for 0.5mm for common LQFP, FQFP encapsulation transfer. You just need to solder the IC an the board itself and take out the DIP connections by either using a breadboard or using Jumper wires.Package Contents1× QFP/TQFP/LQFP/FQFP 32/44/64/80/100 LQF SMD Turn to DIP Adapter PCB Board

INR 27 · In stock
