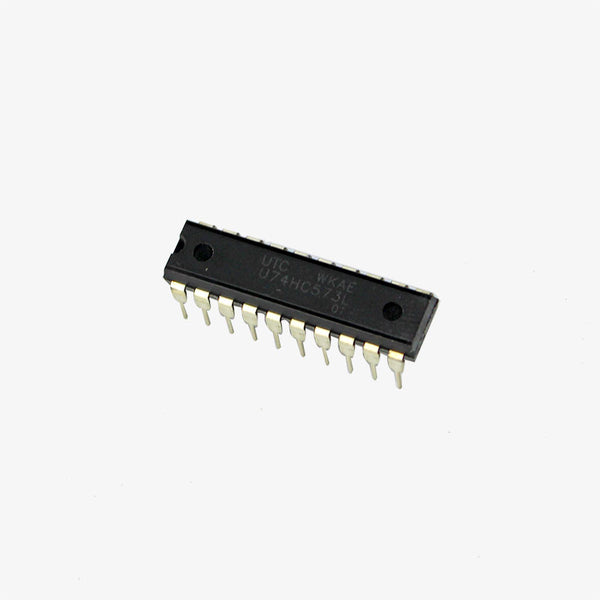

74HC573 - Octal D-type Transparent Latch IC - DIP-20 Package

The HC573 devices are octal transparent D-type latches designed for 2-V to 6-V VCC operation. When the latch-enable (LE) input is high, the Q outputs follow the data (D) inputs. When LE is low, the Q outputs are latched at the logic levels of the D inputs. A buffered output-enable (OE) input can be used to place the eight outputs in either a normal logic state (high or low) or the high-impedance state. In the high-impedance state, the outputs neither load nor drive the bus lines significantly. The high-impedance state and increased drive provide the capability to drive bus lines without interface or pullup components. Old data can be retained, or new data can be entered while the outputs are in the high-impedance state. To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver. The latch is the use of the level control input data, without including the latch and with a controllable latch enable control.SpecificationsSupply Voltage Range: 0.7 to 7VMax supply current: 50mAContinuous drain current: 35mAStorage Temperature Range: -65ᵒC to 150ᵒCMax transition time: 1000ns Product DescriptionHere LE means Latch Input pin, when LE is high, the Output Pins(Q) will follow the Data input Pins(D), puts. When LE is low, the Q outputs are latched at the logic levels of the D. You need to power the IC with VCC and GND pinsAdditional ResourcesDatasheet 74HC373Package Contents1 × 74HC573 - Octal D-type Transparent Latch IC - DIP-20 Package

INR 23 · In stock
