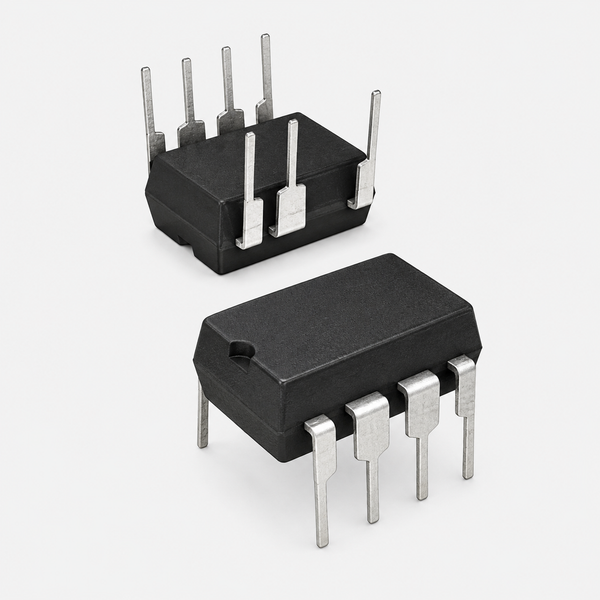

TNY268PN Power Integrations Off Line Switcher with Low Power IC - DIP-8 Package

TNY268PN Power Integrations Off-Line Switcher with Low Power IC - DIP-8 Package is a highly integrated off-line switcher IC from the TinySwitch-II family by Power Integrations. It combines a 700V power MOSFET, PWM controller, startup circuitry, current limiting, and thermal protection into a single device, enabling compact and efficient AC-DC power supply designs. The TNY268PN supports higher output power than the TNY266PN while maintaining excellent efficiency and very low standby power consumption, making it ideal for chargers, adapters, standby supplies, LED drivers, and industrial SMPS applications.Features:Integrated Off-Line Switcher ICBuilt-in 700V Power MOSFETTinySwitch-II ArchitectureUniversal AC Input OperationLow Standby Power ConsumptionAuto-Restart ProtectionCycle-by-Cycle Current LimitingThermal Shutdown ProtectionBuilt-in Soft StartHigh Efficiency OperationMinimal External Components RequiredExcellent EMI PerformanceDIP-8 Through-Hole PackageSuitable for AC-DC Power SuppliesIdeal for Chargers, Adapters & SMPS DesignsRoHS CompliantSpecifications:ParameterValueProduct TypeOff-Line Switcher ICModelTNY268PNSeriesTinySwitch-IIPackageDIP-8Input Voltage85V–265V AC (Universal Input)Output PowerUp to 23W (Open Frame), Up to 15W (Enclosed Adapter)Switching Frequency132kHz (Typical)Integrated MOSFET700V Power MOSFETDrain Breakdown Voltage700VControl MethodPWM ControlProtection FeaturesAuto-Restart, Thermal Shutdown, Current Limiting, Short Circuit ProtectionOperating Temperature-40°C to +150°C (Junction)Mounting TypeThrough HoleApplicationsAC-DC Power Supplies, Battery Chargers, Adapters, LED Drivers, Standby Power Supplies, Industrial ElectronicsRoHS ComplianceYesPin Configuration:PinFunction1EN/UV (Enable/Undervoltage)2BP/M (Bypass/Multi-Function)3SOURCE4SOURCE5SOURCE6DRAIN7DRAIN8DRAIN Also Check These Out:AN7112 Audio Power Amplifier ICTDA2822M Amplifier ICHT12D (RF Decoder) ICPackage Includes:1 x TNY268PN Power Integrations Off-Line Switcher with Low Power IC - DIP-8 Package

INR 37 · Out of stock
