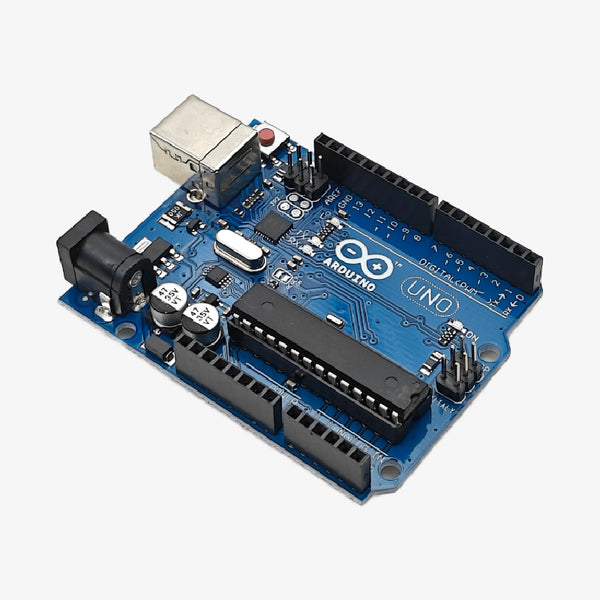

Uno R3 ATmega328P Compatible Development Board- Compatible with Arduino - DIP Version (Without Cable)

The Uno R3 is an ATmega328P microcontroller-based development board. This is widely popular in Embedded electronics because of the available resources and easy to use by everybody features. With 14 digital input/output pins where 6 can be configured and used as PWM outputs, 6 as analog inputs is a great addition for I/O related operations. Powered with a 16 MHz ceramic resonator, an USB connection, a power jack, an ICSP header, and a reset button.It includes a LED that can be useful in multiple applications or to test the board functionality. A voltage regulator, better to say an LDO, is available inside this development board to make this Arduino compatible for a wide range of input voltages. The application is very easy, just upload the code, and run.UNO R3 PinoutPackage Contains1x UNO R3 without the USB Cable.Features:Model Type: UNO Rev R3Microcontroller Chip: ATmega328POperating Voltage (VDC): 5Input Voltage (Recommended): 7-12VInput Voltage (limit): 6-20VAnalog I/O Pins: 6Digital I/O Pins: 14 (of which 6 provide PWM output)PWM Digital I/O Pins: 6DC Current per I/O Pin (mA): 40DC Current for 3.3V Pin (mA): 50Clock Speed: 16 MHzSRAM (KB): 2EEPROM: 1 KB (ATmega328)Flash Memory: 32 KBOn Board LEDs: On/Off, L (PIN 13), TX, RXDimensions in mm (LxWxH): 75 x 54 x 12UNO R3 Applications:Embedded input outputData captureMotor controlRoboticsSmall embedded application and developmentsUNO R3 Dimension and footprint: Additional Resources:Atmega328P Datasheet

INR 359 · In stock
