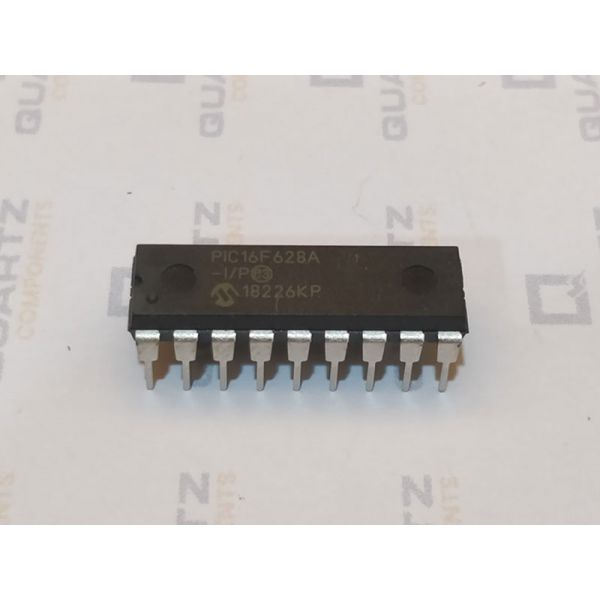

PIC16F628A Microcontroller - 18 Pin DIP Package

The PIC16F628A microcontroller is an 18-pin microcontroller with 8-bit PIC Architecture. The controller has an in-built internal oscillator with 4MHz frequency and 128 bytes of EEPROM data. It has enhanced core features, an eight-level deep stack, and multiple internal and external interrupt sources. The separate instruction and data buses of the Harvard architecture allow a 14-bit wide instruction word with the separate 8-bit wide data. The two-stage instruction pipeline allows all instructions to execute in a single cycle, except for program branches (which require two cycles). A total of 35 instructions (reduced instruction set) are available, complemented by a large register set. It has an operating voltage from 2V to 5.5V hence suitable for low voltage applications. It has two 8-bit timers and one 16-bit timer and 2 comparators. It also has a CCP module enabling compare, capture and PWM operations. It supports UART communication while I2C and SPI are not supported. PIC16F628A microcontrollers typically achieve a 2:1 code compression and a 4:1 speed improvement over other 8-bit microcontrollers in their class. PIC16F628A devices have integrated features to reduce external components, thus reducing system cost, enhancing system reliability and reducing power consumption. PIC16F628A pinout: PIC16F628A features, Specification:Features: -16 I/O pins with individual direction control High current sink/source for direct LED drive Analog comparator module with: - Two analog comparators - Programmable on-chip voltage reference (VREF) module - Selectable internal or external reference - Comparator outputs are externally accessible Timer0: 8-bit timer/counter with 8-bit programmable prescaler Timer1: 16-bit timer/counter with external crystal/ clock capability Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler Capture, Compare, PWM module: - 16-bit Capture/Compare - 10-bit PWM Addressable Universal Synchronous/Asynchronous Receiver/Transmitter USART/S Specification: Program Memory Type FlashProgram Memory Size (KB) 3.5CPU Speed (MIPS/DMIPS) 5SRAM (B). 224Temperature Range (°C) -40 to 125Operating Voltage Range (V) 2V to 5.5VPin Count 18Timers 2 x 8-bit, 1×16-bitData EEPROM/HEF (bytes) 128Digital Communication Peripherals 1-UARTCapture/Compare/PWM Peripherals 1 Input Capture, 1 CCPPIC16F628A Applications:Small Embedded hardwarePC to MCU communicationData processingSmall Industrial Embedded devicesPIC16F628A Dimension and footprint:Example Projects on PIC16F628A:PIC16F628A ProjectsAdditional Resources:PIC16F628A DatasheetPackage Contains1x PIC16F628A

INR 170 · In stock
