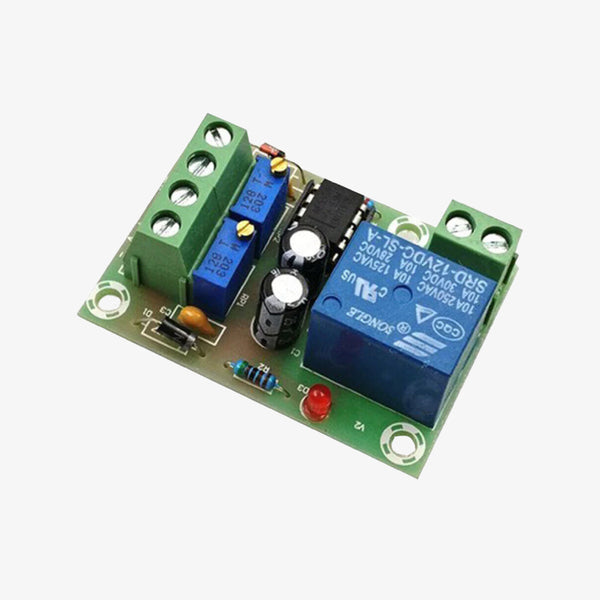

XH-M601 12V Intelligent Battery Charging Control Board

The XH-M601 is an intelligent charging control board designed for 12V storage batteries. With built-in adjustable potentiometers and precise voltage control, this module ensures safe and efficient charging while extending battery life. It automatically starts and stops charging based on user-defined voltage thresholds, making it ideal for lead-acid and lithium batteries in solar systems, backup power systems, and more.XH-M601 12V Intelligent Battery Charging Control Board Features:Automatic Charging Control: Starts and stops charging automatically when voltage thresholds are reached.Adjustable Voltage Settings: Two potentiometers (RP1 and RP2) allow customization of the charging and disconnect voltages.Overcharge Protection: Prevents damage to batteries by stopping charging at the set upper voltage limit.LED Indicators: Displays charging and power status at a glance.High Current Handling: Supports up to 10A for various battery capacities.Compact Design: Small and robust board for easy integration into systems.XH-M601 12V Intelligent Battery Charging Board Specifications:Input Voltage: 13.8–14.8V DCBattery Compatibility: 12V Lead-Acid and Lithium BatteriesRelay Operating Voltage: 12.4VRelay Disconnect Voltage: 14.8VVoltage Tolerance: ±0.1VAdjustable Potentiometers:RP1: Adjusts the battery start charging voltage (low voltage setting; clockwise increases, counter-clockwise decreases).RP2: Adjusts the battery disconnect charging voltage (high voltage setting; clockwise increases, counter-clockwise decreases).Charging Type: 12V Storage BatteryMax Current Capacity: 10APackage Includes:1 x XH-M601 12V Intelligent Battery Charging Control Board

INR 123 · In stock
