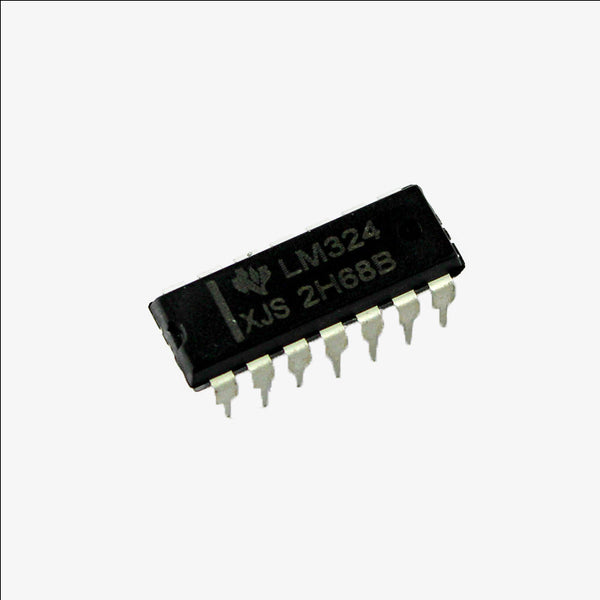

LM324 - Low Power Quad Op-Amp IC - DIP-14 Package

The LM324 IC is a low-cost, low-power IC with four Operational Amplifiers in one package. It is a Quad Op-Amp IC. The four Op-Amps are independent, have a high-gain and a wide operating voltage from 3V to 32V for single supply and 1.5V to 16V for dual supply. The IC has a supply current of about 700uA. The LM324 IC is commonly used as a Summing amplifier, Multivibrators, oscillator, transducer amplifier, DC Gain Block and as a conventional amplifier.Product Description of LM324 - Low Power Quad Op-Amp IC LM324 IC PIN DESCRIPTIONBelow is a table describing the individual pins of the IC. Features of LM324 - Low Power Quad Op-Amp ICFour Amplifiers Per PackageShort Circuited Protected OutputsTrue Differential Input StageSingle Supply Operation: 3.0 V to 32 V or Dual Supplies ±1.5 V to ±16 VDifferential Input Voltage Range Equal to the Power Supply VoltageUnity-Gain Bandwidth: 1MHz (Typ)Internally Frequency Compensated for Unity GainDC Voltage Gain :100dB (Typ)Input Bias Current : 45nA (Typ)Input Offset Voltage : 2mV (Typ)Supply current : ~700uAOperating ambient temperature : 0˚C to 70˚CSoldering pin temperature : 260 ˚C (for 10 seconds – prescribed)Replacement for Industry Types 124, 224, 324Package Contents1× LM324 - Low Power Quad Op-Amp IC

INR 9 · In stock
