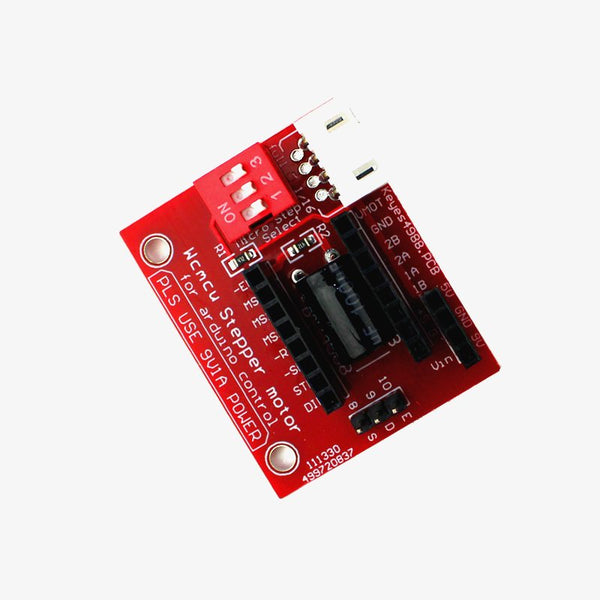

A4988 Stepper Motor Driver Controller Board

The A4988 stepper motor driver carrier is a breakout board for the TI’s A4988 micro stepping bipolar stepper motor driver. It has a proper Connector for the stepper motor, a three in 1 DIP switch for controlling the motor in 5 steps. The motor configuration can be set using this board - Switch 1Switch 2Switch 3 Motor StepsOFFOFFOFFFull StepOFFONONHalf StepONOFFONQuarter StepONONOFFEighth StepONONONSixteenth Step It has Enable, Direction and Step pinouts. Supports logic level of 5V while motor supply voltage from 8-35V. It is recommended to use at least 9V in this board.A4988 Stepper Motor Breakout Board pinout: Specification: -Minimum operating voltage: 8.2VMaximum operating voltage: 35VMaximum current per phase: 2AmpMinimum logic voltage: 3.0VMaximum logic voltage: 5.0VMicro step resolutions: Full, 1/2, 1/4, 1/8, 1/16 Selectable using DIP SwitchReverse voltage protection: NoA4988 Stepper Motor Breakout Board Dimension and footprint:A4988 Stepper Motor Breakout Board Applications:Interfacing with A4988Stepper Motor ControlAutomotiveControl systemRobotics Example Projects on A4988 Stepper Motor Breakout Board:A4988 Stepper Motor Breakout Board InterfacingAdditional Resources:A4988 Datasheet Package Contains1x A4988 Stepper Motor Breakout Board

INR 60 · In stock
