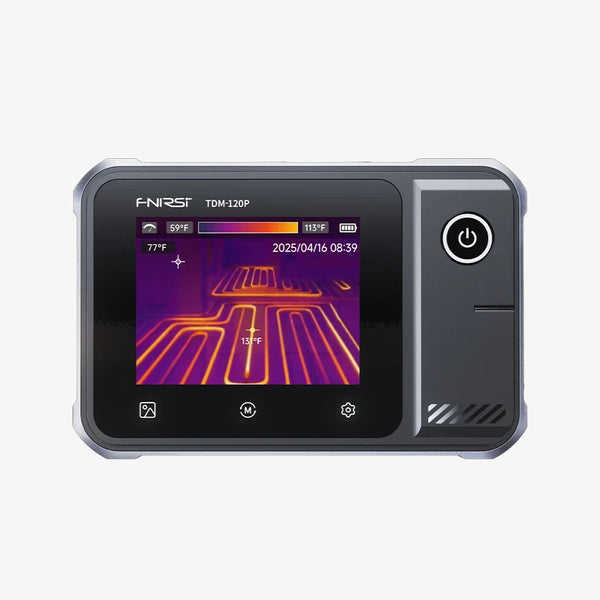

FNIRSI® TDM-120P Thermal Imaging Multimeter

FNIRSI® TDM-120P Thermal Imaging Multimeter is a professional 2-in-1 handheld test instrument that combines a high-resolution thermal imaging camera with a 19,999-count True RMS digital multimeter. It features a 120 × 90 infrared detector, <60mK thermal sensitivity, a wide -20°C to 400°C temperature measurement range, adjustable emissivity, automatic high/low temperature tracking, and a 2.8-inch touchscreen LCD with seven selectable color palettes. The integrated multimeter supports AC/DC voltage, resistance, capacitance, diode, and continuity testing, making the TDM-120P suitable for electrical inspection, HVAC troubleshooting, automotive diagnostics, PCB testing, industrial maintenance, and thermal fault detection.FNIRSI® TDM-120P Thermal Imaging Multimeter ManualFeatures:2-in-1 thermal imaging camera and True RMS digital multimeter.120 × 90 infrared thermal imaging resolution.High thermal sensitivity of less than 60mK.Vanadium oxide infrared detector.25Hz maximum thermal imaging frame rate.Wide temperature measurement range from -20°C to 400°C.Temperature range from -4°F to 752°F.Temperature measurement accuracy of ±2°C or ±2%.Adjustable emissivity from 0.01 to 1.00.50° field of view.Center-point temperature measurement.Automatic high-temperature and low-temperature tracking.High-temperature and low-temperature alarm function.Seven selectable thermal image color palettes.2.8-inch LCD capacitive touchscreen.Supports Celsius and Fahrenheit temperature units.19,999-count True RMS multimeter.Measures AC voltage, DC voltage, resistance, capacitance, diode, and continuity.Data hold function for electrical measurements.Real-time maximum and minimum value display.One-click thermal image capture.Image and measurement data export through USB.Built-in 32GB storage for thermal images and data.USB Type-C charging and data interface.Adjustable screen brightness.Adjustable automatic power-off timer.Simplified Chinese and English language support.Compact portable design for field measurements.Suitable for electrical, HVAC, automotive, industrial, construction, electronics, and maintenance applications.Basic Specifications:ParameterValueBrandFNIRSI®ModelTDM-120PProduct TypeThermal Imaging MultimeterInstrument Type2-in-1 Thermal Imager + Digital MultimeterMultimeter Resolution19,999 CountsMultimeter TypeTrue RMSDisplay TypeLCD TouchscreenDisplay Size2.8 InchDisplay InterfaceCapacitive TouchStorage32GBCharging InterfaceUSB Type-CLanguagesChinese / EnglishTemperature Unit°C / °FAuto Power-Off5 / 10 / 20 Minutes / OffScreen BrightnessAdjustableOperating Temperature-5°C to 40°COperating Humidity≤80% RHDesignPortable HandheldThermal Imaging Specifications:ParameterValueDetector TypeVanadium OxideInfrared Resolution120 × 90 PixelsThermal Sensitivity<60mKField of View50°Frame Rate≤25HzTemperature Range-20°C to 400°CTemperature Range-4°F to 752°FTemperature Accuracy±2°C or ±2%Emissivity0.01–1.00 AdjustableMeasurement Distance0.5–3mTemperature DisplayCenter Point + High/Low TrackingCenter Temperature MeasurementSupportedHigh Temperature TrackingAutomaticLow Temperature TrackingAutomaticHigh Temperature AlarmSupportedLow Temperature AlarmSupportedTemperature Unit°C / °FColor Palettes7Image CaptureSupportedImage StorageSupportedUSB Image ExportSupportedThermal Image Display Specifications:ParameterValueDisplay2.8-inch LCD TouchscreenTouch ControlCapacitiveColor PalettesArctic / Hot Iron / Iron Red / Rainbow / Lava / Black Hot / White HotCenter CursorSupportedFloating CursorSupportedHigh Temperature MarkerSupportedLow Temperature MarkerSupportedTemperature ScaleSupportedImage CaptureOne-ClickImage StorageSupportedData ExportUSBBrightness AdjustmentSupportedDC Voltage Specifications:ParameterValueMeasurement TypeDC VoltageRange 11.9999VRange 219.999VRange 3199.99VRange 41000VAccuracy±(0.5% + 3 Digits)Measurement ModeTrue RMS MultimeterData HoldSupportedMaximum Value DisplaySupportedMinimum Value DisplaySupportedAC Voltage Specifications:ParameterValueMeasurement TypeAC VoltageRange 11.9999VRange 219.999VRange 3199.99VRange 4750.0VAccuracy±(1% + 3 Digits)Measurement ModeTrue RMSData HoldSupportedMaximum Value DisplaySupportedMinimum Value DisplaySupportedResistance Specifications:ParameterValueMeasurement TypeResistanceMaximum Range19.999MΩOther Ranges1.9999MΩ / 199.99KΩ / 19.999KΩ / 1.9999KΩ / 199.99ΩAccuracy±(0.5% + 3 Digits)*Low-Range Accuracy±(2.0% + 3 Digits)*Data HoldSupportedMaximum ValueSupportedMinimum ValueSupportedCapacitance Specifications:ParameterValueMeasurement TypeCapacitanceRange 19.999nFRange 299.99nFRange 3999.9nFRange 49.999µFRange 599.99µFRange 6999.9µFRange 79.999mFAccuracy±(2.0% + 5 Digits)*High-Capacitance Accuracy±(5.0% + 20 Digits)*Data HoldSupportedAdditional Multimeter Functions:ParameterValueDiode TestSupportedContinuity TestSupportedTrue RMSSupportedData HoldSupportedMaximum ValueSupportedMinimum ValueSupportedAuto / Manual RangeSupported*Measurement DisplayReal-TimePower & Data Specifications:ParameterValueCharging InterfaceUSB Type-CBatteryRechargeable Lithium BatteryStorage Capacity32GBImage StorageSupportedMeasurement Data StorageSupportedUSB Data TransferSupportedFirmware UpgradeSupportedAuto Power-Off5 / 10 / 20 Minutes / OffChargingType-CField OperationSupportedExplore the FNIRSI Collection featuring advanced digital multimeters, oscilloscopes, signal generators, laser rangefinders, thermal cameras, USB testers, and precision electronic test equipment. Ideal for electronics engineers, technicians, makers, DIY enthusiasts, troubleshooting, circuit analysis, industrial maintenance, and professional measurement applications.Also Check These Products:-FNIRSI HRM-10 Battery Voltage Internal Resistance TesterFNIRSI LCR-P1 Multifunction Transistor Capacitor TesterFNIRSI LCR-ST1 Mini Smart Tweezer LCR SMD ESR TesterFNIRSI DMC-100 DC AC Current Voltage Digital Clamp MultimeterFNIRSI DMT-99 Intelligent Color Screen Digital MultiMeterPackage Includes:1 x FNIRSI® TDM-120P Thermal Imaging Multimeter1 x USB Data Cable1 x Digital Multimeter Test Lead Set1 x Tool Bag1 x User Guide
