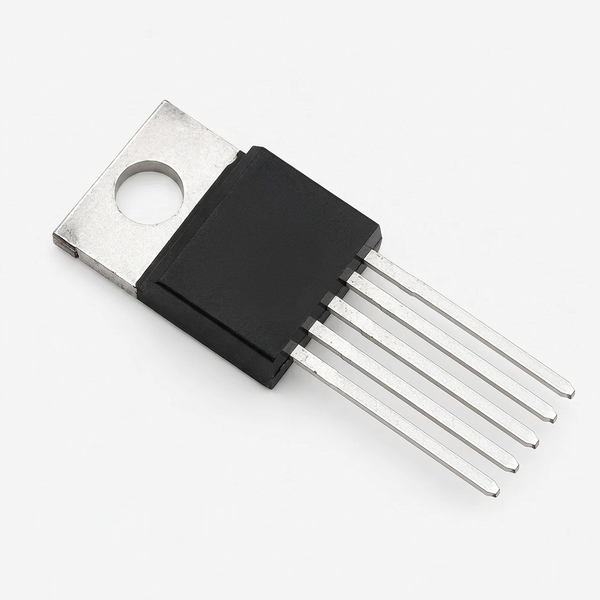

XL4016E1 12A 40V Buck DC to DC Converter IC TO-220-5L Package

XL4016E1 12A 40V Buck DC to DC Converter IC TO-220-5L Package is a high-efficiency synchronous step-down (buck) DC-DC converter IC designed for high-current power conversion applications. Developed by XL Semiconductor, it integrates a high-performance power MOSFET, PWM control circuitry, and multiple protection features to deliver stable, low-ripple output with excellent efficiency. Operating at a fixed switching frequency of 180kHz, the XL4016E1 is ideal for battery chargers, power supplies, solar controllers, LED drivers, automotive electronics, and industrial applications.XL4016E1 12A 40V Buck DC to DC Converter IC TO-220-5L Package DatasheetFeatures:Wide 8V to 36V Input Voltage RangeAdjustable Output Voltage from 1.25V to 32V12A Maximum Output CurrentHigh Efficiency up to 96%Fixed 180kHz Switching FrequencyIntegrated High-Performance Power MOSFET100% Maximum Duty CycleLow Dropout Voltage (0.3V)Excellent Line and Load RegulationBuilt-in Thermal Shutdown ProtectionBuilt-in Current Limit ProtectionBuilt-in Output Short Circuit ProtectionTO-220-5L Package for Efficient Heat DissipationSpecifications:ParameterValueProduct TypeBuck DC-DC Converter ICModelXL4016E1ManufacturerXL SemiconductorPackageTO-220-5LTopologyStep-Down (Buck) ConverterInput Voltage Range8V – 36V DCAdjustable Output Voltage1.25V – 32V DCMaximum Output Current12ASwitching Frequency180kHzMaximum EfficiencyUp to 96%Maximum Duty Cycle100%Minimum Dropout Voltage0.3VInternal MOSFETIntegratedProtection FeaturesThermal Shutdown, Current Limit, Output Short Circuit Protection Also Check These Products:-L7805CV Linear Voltage Regulator IC (STMicroelectronics) - TO-220-3 PackageTDA2003A/UTC2003 Audio Amplifier IC (TO-220)XL4016 Step Down Buck Converter (300W 10A Power Supply Module)XL6009 Step Up Down Buck Boost Converter ModulePackage Includes:1 x XL4016E1 12A 40V Buck DC to DC Converter IC TO-220-5L Package

INR 61 · In stock
