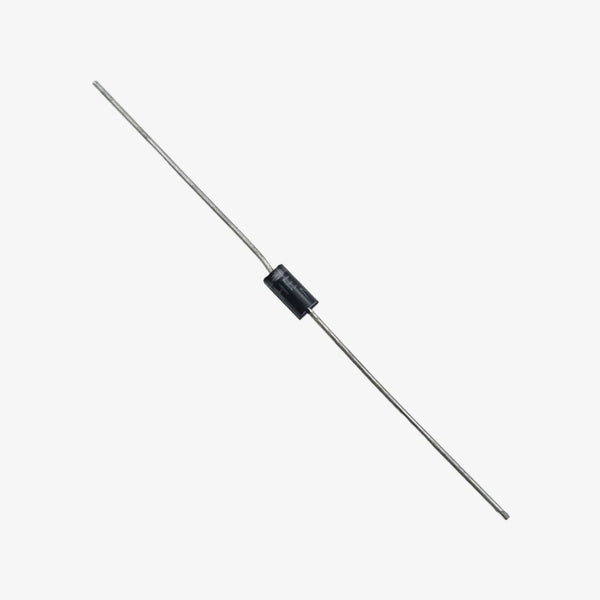

HER108 Ultra Fast Rectifier Diode 1A

The HER108 Ultra Fast Rectifier Diode 1A is designed for efficient AC to DC rectification in fast-switching applications. Its molded DO-41 body ensures reliable operation under high-speed load conditions. Ideal for power supplies, inverters, converters, and freewheeling circuits.CLICK HERE FOR DATASHEETFeatures:Low forward voltage drop for efficient operationHigh current capability for demanding loadsHigh surge current tolerance with reliable constructionFast switching for high-efficiency rectificationSpecifications:Maximum Repetitive Peak Reverse Voltage (VRRM): 1000 VMaximum RMS Voltage (VRMS): 700 VMaximum DC Blocking Voltage (VDC): 1000 VMaximum Average Forward Rectified Current (IF(AV)): 1.0 APeak Forward Surge Current (IFSM): 30 AForward Voltage (VF) at 1 A: 1.85 VPeak Reverse Current (IR) at 25°C: 5 µAPeak Reverse Current (IR) at 100°C: 150 µAReverse Recovery Time (trr): 70 nsTypical Junction Capacitance (CJ): 20 pFOperating Temperature Range (TJ): -65°C to +125°CStorage Temperature Range (TSTG): -65°C to +125°CPackage Includes:1 × HER108 Ultra Fast Rectifier Diode 1A

INR 3 · In stock
