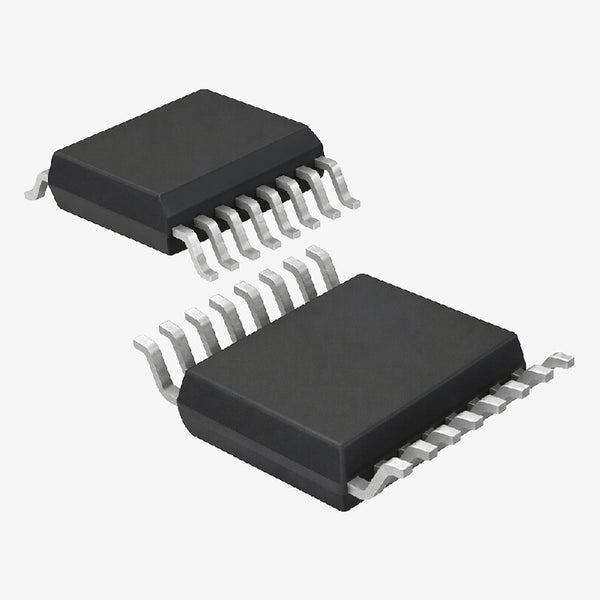

DRV8833PWPR TI Dual H-Bridge Motor Driver IC - HTSSOP-16 Package

DRV8833PWPR Texas Instruments Dual H-Bridge Motor Driver IC is a dual H-bridge motor driver IC designed to control two DC brushed motors, one bipolar stepper motor, solenoids, or other inductive loads. It supports a motor supply voltage of 2.7 V to 10.8 V and provides current regulation, current limiting, overcurrent protection, thermal shutdown, undervoltage protection, and a low-power sleep mode. The HTSSOP-16 package with PowerPAD provides an efficient surface-mount solution for compact motor-control applications.DRV8833PWPR-TI-Dual H-Bridge Motor Driver IC - HTSSOP-16 Package DatasheetFeatures:Dual H-bridge motor driver for controlling two DC motors.Can drive one bipolar stepper motor.Motor supply voltage from 2.7 V to 10.8 V.Up to 1.5 A RMS and 2 A peak output current per H-bridge in the HTSSOP package.Outputs can be paralleled for higher current capability.PWM current regulation and current limiting.Integrated overcurrent and short-circuit protection.Thermal shutdown protection.Undervoltage lockout.Low-power sleep mode.Fault output for protection status indication.HTSSOP-16 package with integrated PowerPAD for improved thermal performance.Specifications:ParameterValueProduct TypeDual H-Bridge Motor Driver ICModelDRV8833PWPRBrandTexas InstrumentsNumber of H-Bridges2Motor Supply Voltage2.7 V to 10.8 VOutput Current per H-Bridge1.5 A RMSPeak Output Current per H-Bridge2 AMotor Support2 × DC Motors / 1 × Bipolar Stepper MotorCurrent RegulationPWM Current RegulationProtectionOvercurrent, Short Circuit, Thermal Shutdown, UndervoltageControl InterfaceLogic InputsSleep ModeYesFault OutputnFAULT, Active LowOperating Temperature-40°C to +85°CPackageHTSSOP-16 (PWP)Mounting TypeSurface MountThermal PadPowerPADPin Configuration:Pin No.Pin NameDescription1nSLEEPSleep Mode Control Input2AOUT1H-Bridge A Output 13AISENH-Bridge A Current Sense4AOUT2H-Bridge A Output 25BOUT2H-Bridge B Output 26BISENH-Bridge B Current Sense7BOUT1H-Bridge B Output 18nFAULTFault Output, Active Low9BIN1H-Bridge B Input 110BIN2H-Bridge B Input 211VCPCharge Pump Supply12VMMotor Supply Voltage13GNDGround14VINTInternal Supply Bypass15AIN2H-Bridge A Input 216AIN1H-Bridge A Input 1PowerPADGNDThermal Ground ConnectionAlso Check These Out:AN7112 Audio Power Amplifier ICTDA2822M Amplifier ICHT12D (RF Decoder) ICPackage Includes:1 × DRV8833PWPR-TI Dual H-Bridge Motor Driver IC - HTSSOP-16 Package

INR 225 · In stock
