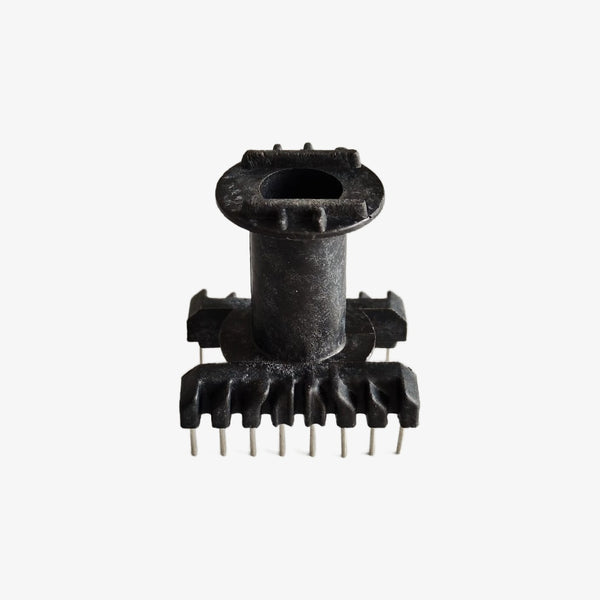

ETD39 Transformer Vertical Bobbin 16 Pin

The ETD39 Transformer Vertical Bobbin (16 Pin) is a popular choice for use in SMPS (Switched Mode Power Supply) circuits, designed specifically for efficient power transfer with a balance between size and performance. Below is a detailed description of its features and specifications.Features:Core Type: ETD39Pin Count: 16 pins (dual row configuration)Bobbin Type: Vertical mounting for space-saving in PCB layoutsMaterial: High-quality plastic, often flame-retardant (UL94-V0) for safetyApplications: Ideal for use in power transformers, specifically in high-frequency applications like SMPS, converters, inverters, and moreCompatibility: Suited for ETD39 cores which are known for their high energy efficiency in power conversion applicationsWinding Slots: The design supports multiple windings, making it suitable for transformers with complex winding configurationsSpecifications:Pin Pitch: Standard pitch of approximately 5 mm (depending on the manufacturer)Dimensions: Typically matches the standard ETD39 core size with a window area optimized for windingMax Winding Turns: Supports high-density windings due to the large window areaMounting: Vertical bobbin with through-hole pins designed for PCB mounting

INR 27 · In stock
