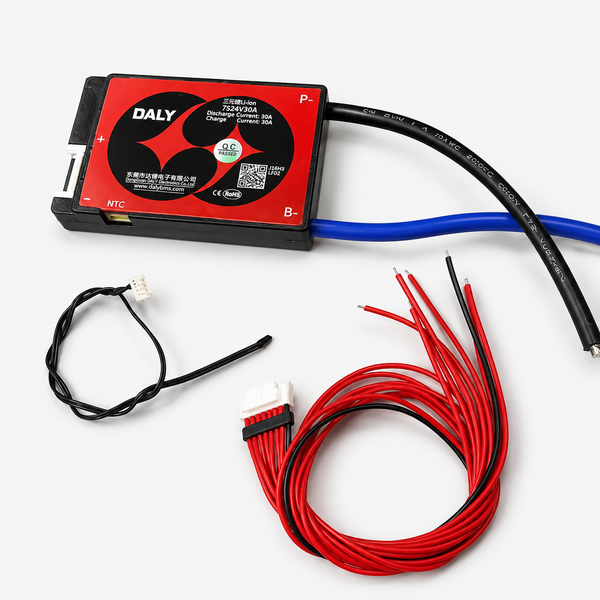

24V 7S 30A BMS Daly Waterproof BMS for Li-ion Cell (NMC)

Li-ion 7S 24V 30A Lithium Battery Protection Board with balance PCM BMSDaly 24V 7S 30A BMS Features :Strong load ability, constant discharge current 10A~250A , use high voltage resistance, low inner resistance power Mosfet. The heat sink will greatly help cooling.IC itself has power balancing function. The circuit is simple and reliable.Typical voltage detection for each cell. So each battery will be prevented over charged or over discharged. Over current and short circuit protection function is very reliable. long time short circuit of the load won't affect the PCB and the battery. Temperature protection during charging and discharging.Extreme low power consumption. the consumption of the whole device is less than 50uA.PCB use high anti-corrosion, high water resistance, high impedance ESD conformal coating.Daly 24V 7S 30A BMS Specification :Balance Current(mA)30±5Balance Detect Voltage(V)3.8Cable Size (AWG)12Charge Current(A)15Charge Voltage(V)29.4Height (mm)9Length (mm)82Model7S 24V 30AOver Discharge Detect(V)2.7±0.1Over Discharge Release(V)OffloadOvercharge Detect Voltage(V)4.25±0.05Overcharge Release Voltage(V)4.15±0.05Width (mm)60Working Temperature Range (°C)-20 to 70Explore wide range of DALY Smart BMS >Package Includes :1 x 24V 7S 30A BMS Daly Waterproof BMS

INR 999 · Out of stock
