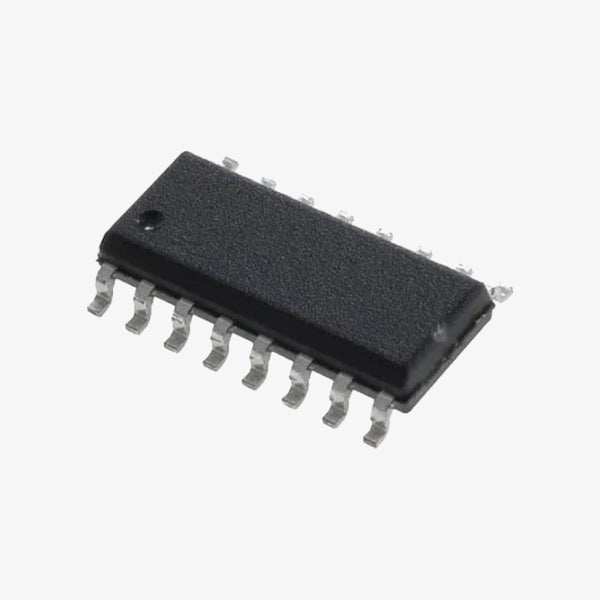

74HC4053 Triple 2-Channel Analog Multiplexer/Demultiplexer IC - SOIC-16 SMD Package

The 74HC4053 is a high-speed CMOS triple 2-channel analog multiplexer/demultiplexer IC. It features three independent analog switches, each with two input/output terminals and a common select terminal. The IC is designed for analog and digital multiplexing applications such as signal routing, data acquisition systems, and switching audio/video signals. Its low ON resistance and high-speed switching make it highly suitable for modern electronic systems.Packaged in a compact SOIC-16 SMD form factor, the 74HC4053 is ideal for surface-mount designs requiring space efficiency and reliable signal routing.Features of 74HC4053 Multiplexer IC:Triple 2-channel analog multiplexer/demultiplexerHigh-speed CMOS technology for low power consumptionWide supply voltage range from 2V to 10VLow ON resistance for minimal signal lossSeparate enable input for each switchFast switching speed with low crosstalkSuitable for analog and digital signal routingCompact SOIC-16 SMD package for efficient PCB layoutSpecifications of 74HC4053 Multiplexer IC:Model: 74HC4053Supply Voltage Range: 2V – 10VLogic Voltage Level: CMOS CompatibleNumber of Channels: 3 (each with 2-way switching)ON Resistance (Ron): ~70Ω (typical at Vcc = 4.5V)Propagation Delay: ~13ns (typical)Package Type: SOIC-16 SMDOperating Temperature: -40°C to +85°CPackage Includes:1 × 74HC4053 Triple 2-Channel Analog Multiplexer/Demultiplexer IC – SOIC-16 SMD Package

INR 15 · In stock
