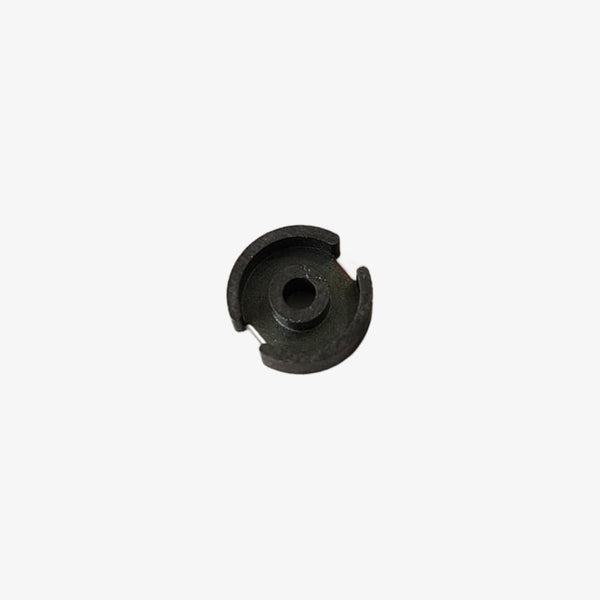

P0903 POT Core

The P0903 is a ferrite pot core designed for applications requiring low leakage inductance, high Q factor, and temperature stability. Its enclosed design minimizes electromagnetic interference, making it suitable for use in broadband and narrowband transformers, telecom inductors, power transformers, power inductors, and inductive switches. Key Dimensions:A: 7.2 ±0.2 mmD1: 9.15 ±0.5 mmD2: 7.62 +0.13/-0.12 mmD3: 3.8 ±0.1 mmD4: 2.05 ±0.05 mmG: 1.9 ±0.5 mmH1: 2.65 ±0.1 mmH2: 1.88 ±0.5 mmThese dimensions ensure compatibility with standard bobbins and hardware, facilitating ease of assembly in various electronic circuits.Material and Inductance Factor (AL):The P0903 core is available in multiple ferrite materials, each offering distinct inductance factors (AL) to suit specific application needs:CF 140: AL = 1350 nHCF 196: AL = 1200 nHCF 139: AL = 1250 nHCF 195: AL = 1750 nHCF 130: AL = 1450 nHThese variations allow designers to select the appropriate material based on the desired inductance and performance characteristics. Effective Parameters:Effective Magnetic Path Length (Le): 11.97 mmEffective Cross-Sectional Area (Ae): 10.46 mm²These parameters are crucial for calculating the inductance and understanding the magnetic behavior of the core in different circuit configurations

INR 57 · In stock
