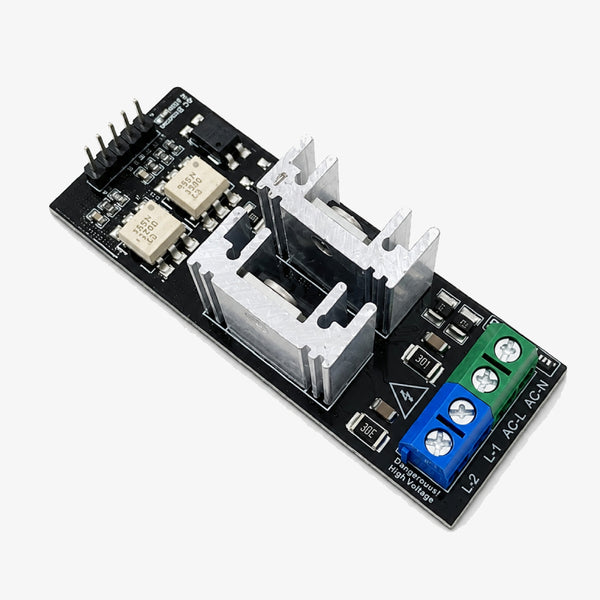

AC Light lamp dimming LED lamp and 2 Channel motor Dimmer Module

AC Light 2 Channel motor Dimmer Module is a two-channel AC dimmer module designed to independently control the power delivered to two AC loads. It uses BTA16-600B TRIACs and supports 3.3V or 5V logic-level control, making it suitable for interfacing with Arduino, ESP32, and other microcontrollers. The module can be used for dimming compatible lamps and controlling AC loads such as fans, pumps, and other appliances. The power section is electrically isolated from the control section for safer microcontroller interfacing. AC Light lamp dimming LED lamp and motor Dimmer Module, 2 Channel Library Features:2-channel AC dimming control.Independent control of two AC loads.Uses high-quality BTA16-600B TRIACs.Supports 110V AC and 220V AC systems.Compatible with 50Hz and 60Hz AC power.Supports 3.3V and 5V microcontroller logic.Power section isolated from the control section.Suitable for dimmable incandescent and filament lamps.Can be used with compatible LED lamps.Suitable for AC fans, pumps, heating elements, and other compatible loads.Supports smooth AC power control using phase-angle dimming.Suitable for Arduino, ESP32, and other microcontroller projects.Two dimming channels can be controlled from a single microcontroller.Uses a shared zero-cross detection signal for AC waveform synchronization.Suitable for smart-home and automation applications. Specifications:ParameterValueProduct Type2-Channel AC Dimmer ModuleNumber of Channels2TRIACBTA16-600BTRIAC Voltage Rating600VAC Input Voltage110V / 220V ACAC Frequency50Hz / 60HzNormal Load Current2A per ChannelPeak Load Current5A per ChannelControl Logic Voltage3.3V / 5VControl TypeMicrocontroller LogicDimming MethodAC Phase-Angle ControlZero-Cross DetectionShared Zero-Cross SignalOutput Channels2 Independent AC OutputsIsolationControl-to-Power IsolationCompatible ControllersArduino, ESP32 & Other MCUsSuitable LoadsLamps, Fans, Pumps, Heating Elements & Compatible AC LoadsLamp CompatibilityIncandescent / Filament / Compatible Dimmable LEDPower SupplyAC Mains + Low-Voltage LogicApplication TypeAC Load Control & DimmingMounting TypePCB ModulePin Configuration:PinNameDescription1L / AC INAC Mains Input2N / AC INAC Mains Neutral Input3OUT1AC Output Channel 14OUT2AC Output Channel 25VCC3.3V / 5V Logic Supply6GNDLogic Ground7ZCZero-Cross Detection Signal8PSM1Channel 1 Control Signal9PSM2Channel 2 Control SignalAlso Check These Out:AS-10 220V AC Automatic On/Off Photocell Street Lamp Light Switch Controller5X 10X Light-Weight Portable Tabletop Gooseneck Led Magnifying Desk LampPackage Includes:1 × AC Light lamp dimming LED lamp and 2 Channel motor Dimmer Module

INR 998 · Out of stock
