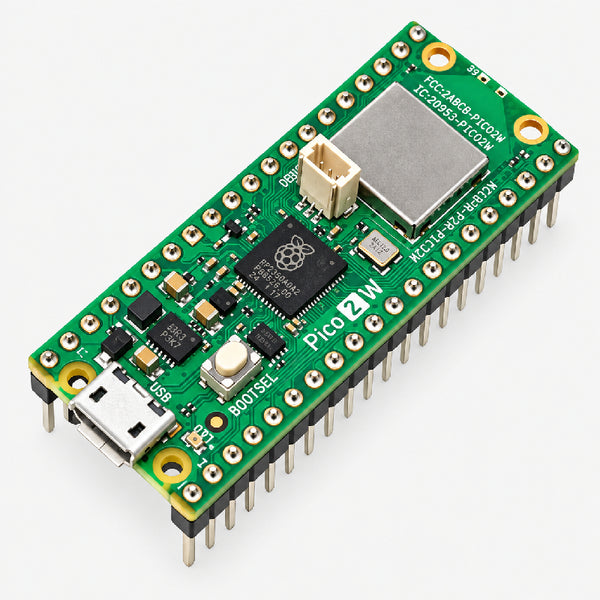

Raspberry Pi Pico 2 W with Header Pins

Raspberry Pi Pico 2 W with Header Pins is a wireless microcontroller development board based on the Raspberry Pi RP2350, combining high-performance microcontroller processing with 2.4GHz Wi-Fi and Bluetooth 5.2 connectivity. It features dual-core Arm Cortex-M33 or Hazard3 RISC-V processors running at up to 150MHz, 520KB SRAM, 4MB onboard flash, 26 multifunction GPIOs, USB 1.1, ADC, PWM, SPI, I2C, UART, and programmable I/O. The header-pin version comes with pre-soldered 2.54mm GPIO headers for convenient breadboard and jumper-wire connections, making it suitable for IoT, robotics, automation, wireless sensors, and embedded applications.Raspberry Pi Pico 2 W with Header Pins DatasheetFeatures:Official Raspberry Pi Pico 2 W with pre-soldered header pins.Powered by the Raspberry Pi RP2350 microcontroller.Dual-core Arm Cortex-M33 or dual-core Hazard3 RISC-V processor.Up to 150MHz operating frequency.520KB on-chip SRAM.4MB onboard QSPI flash memory.26 multifunction GPIO pins.12-bit, 500ksps ADC.2.4GHz single-band 802.11n Wi-Fi.Bluetooth 5.2 with Bluetooth Low Energy support.Onboard Infineon CYW43439 wireless chip.Onboard antenna.2 × UART interfaces.2 × SPI interfaces.2 × I2C interfaces.24 × PWM channels.3 × PIO blocks with 12 programmable state machines.USB 1.1 host and device support.Built-in temperature sensor.Programmable onboard LED.Pre-soldered headers for easy breadboard and jumper-wire connection.Supports C/C++ and MicroPython programming.Suitable for IoT, robotics, automation, wireless sensors, smart devices, and DIY electronics.Specifications:ParameterValueProduct TypeWireless Microcontroller Development BoardBrandRaspberry PiModelRaspberry Pi Pico 2 W with Headers (SC1634)Product CodeSC1634MicrocontrollerRP2350CPU ArchitectureDual Arm Cortex-M33 / Dual Hazard3 RISC-VMaximum Clock Frequency150MHzSRAM520KBOnboard Flash4MB QSPI FlashGPIO26 Multifunction GPIOADC12-bit, 500kspsADC Inputs4PWM Channels24UART2SPI2I2C2PIO Blocks3PIO State Machines12USBUSB 1.1USB FunctionHost / DeviceWi-Fi2.4GHz 802.11nBluetoothBluetooth 5.2Bluetooth LEYesWireless ChipInfineon CYW43439AntennaOnboard AntennaGPIO Logic Voltage3.3VInput Power1.8–5.5V DCOnboard LEDYesTemperature SensorYesDebug Interface3-Pin Debug ConnectorHeader TypePre-Soldered GPIO HeadersHeader Configuration2 × 20-PinHeader Pitch2.54mmBoard DimensionsApprox. 51 × 21mmOperating Temperature-20°C to +85°CProgramming SupportC / C++ / MicroPythonForm FactorCompact Microcontroller BoardApplicationIoT, Robotics, Automation, Wireless Projects, Embedded SystemsBrowse our full Raspberry Pi Collection including development boards, camera modules, displays, power supplies, HATs, and accessories designed for IoT, automation, robotics, and embedded systems.Package Includes:1 x Raspberry Pi Pico 2 W with Pre-Soldered Header Pins (SC1634)

INR 835 · In stock
