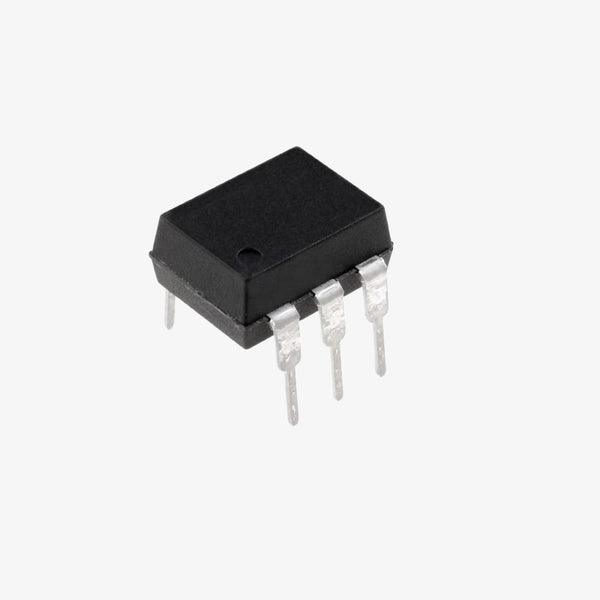

MOC3052 Optoisolator Triac Driver Optocoupler IC - DIP-6 Package

MOC3052 Optoisolator Triac Driver Optocoupler IC - DIP-6 Package is a random-phase optoisolator featuring an infrared LED input optically coupled to a bilateral TRIAC output. Unlike zero-crossing optocouplers, it can trigger at any point of the AC waveform, making it suitable for phase-control circuits. It provides electrical isolation between low-voltage control electronics and AC load circuits and supports a 600V peak blocking voltage. Features:MOC3052 random-phase TRIAC driver optocouplerSingle-channel configurationInfrared LED inputBilateral TRIAC outputNon-zero-crossing operation600V peak blocking voltage5000Vrms isolation voltageLED trigger current up to 10mAHigh static dv/dt capabilityThrough-hole DIP-6 packageSuitable for AC phase-control circuitsRoHS-compliant versions availableSpecifications:SpecificationValueProduct TypeTRIAC Driver OptocouplerPart NumberMOC3052Number of Channels1Input TypeInfrared LEDOutput TypePhoto-TRIACTrigger TypeRandom PhaseZero-Crossing CircuitNoPeak Blocking Voltage600VIsolation Voltage5000VrmsLED Forward Voltage1.2V typicalLED Forward Current50mA maximumLED Trigger Current10mA maximumHolding Current400µA typicalStatic dV/dt1kV/µs minimumPeak Repetitive Surge Current1AOperating Temperature-40°C to +100°CMounting TypeThrough HolePackageDIP-6 / PDIP-6Number of Pins6Package Width7.62 mmPin Diagram:-Also Check These Products:-AN7112 Audio Power Amplifier ICTDA2822M Amplifier ICHT12D (RF Decoder) ICPackage Includes:1 × MOC3052 Optoisolator Triac Driver Optocoupler IC - DIP-6 Package

INR 32 · In stock
