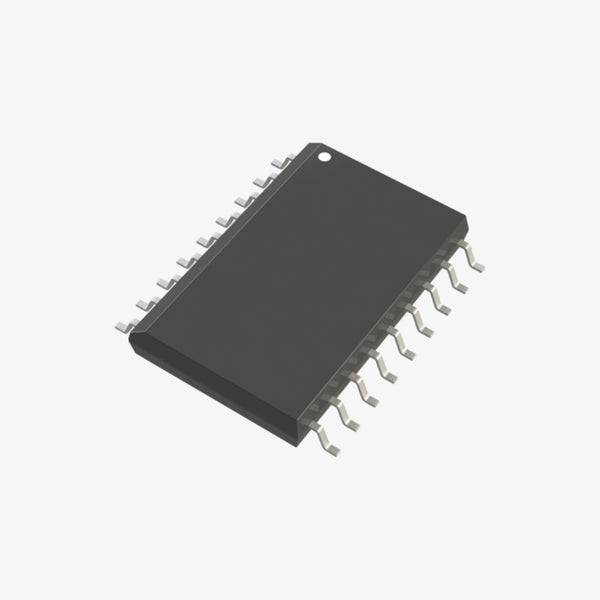

ULN2803 - 8 Darlington Transistor Arrays IC - SOIC-18 SMD Package

The ULN2803 is an 8-channel Darlington transistor array IC designed for high-voltage, high-current switching applications. Each channel can sink up to 500 mA, making it ideal for driving loads such as relays, solenoids, and lamps. The IC features internal clamping diodes for inductive load suppression and is available in a compact SOIC-18 SMD package, making it suitable for various electronic applications.Specifications:IC Type: 8 Darlington Transistor ArraysPackage Type: SOIC-18 SMDPackage Size: 18 PinsSupply Voltage: Up to 50 VOutput Current: 500 mA per channelInput Current: 25 mA (maximum)Output Clamping Diode: Built-in for each channelInput Compatibility: TTL and CMOSOperating Temperature Range: -20°C to +85°CPin Configuration:Input 1Input 2Input 3Input 4Input 5Input 6Input 7Input 8GroundOutput 8Output 7Output 6Output 5Output 4Output 3Output 2Output 1Common (COM)Features:8-channel Darlington transistor arrayHigh-voltage and high-current capabilityInternal clamping diodes for inductive load protectionCompatible with TTL and CMOS logic levelsCompact SOIC-18 package for efficient designsApplications:Relay and solenoid drivingLamp and LED displaysMotor controlLine driversLogic buffersPackage Includes:1 x ULN2803 - 8 Darlington Transistor Arrays IC (SOIC-18 SMD Package)Note: Product images are for illustrative purposes only and may differ from the actual product.
