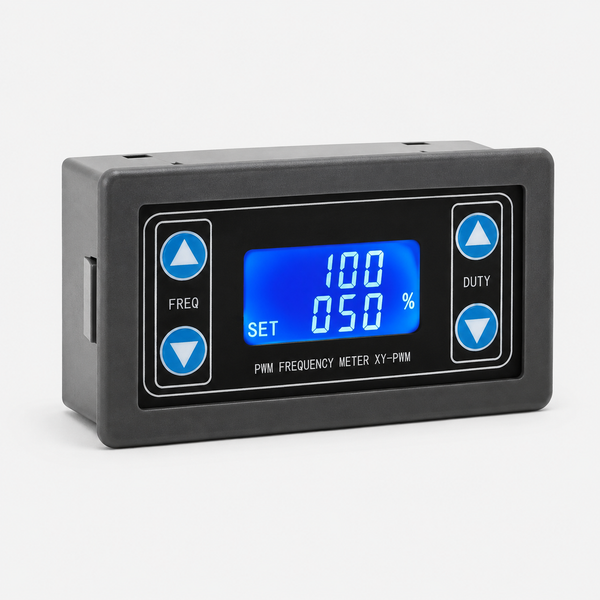

Digital PWM Generator with Display

Digital PWM Generator with Display is a compact and versatile pulse width modulation (PWM) signal generator designed for generating adjustable PWM signals for motor speed control, LED dimming, signal testing, and embedded system development. Featuring a digital display, rotary encoder, and wide frequency adjustment range, it allows precise control over both PWM frequency and duty cycle, making it suitable for electronics testing, automation, and DIY projects.Features:Digital display for real-time frequency and duty cycle indication.Adjustable PWM frequency and duty cycle.Wide frequency output range for various applications.High-precision signal generation with stable output.Easy operation using rotary encoder and push-button controls.Supports memory function to retain previous settings.Compact design for easy integration into projects.Suitable for motor speed control, LED dimming, and signal testing.Low power consumption and stable performance.Ideal for laboratories, automation, electronics development, and DIY projects.Specifications:ParameterValueProduct TypeDigital PWM Signal GeneratorDisplay TypeLED Digital DisplayInput Voltage3.3V – 30V DCOutput VoltageEqual to Input VoltagePWM Frequency Range1Hz – 150kHzDuty Cycle Range0% – 100%Frequency Resolution1HzDuty Cycle Resolution1%Signal Output TypePWM Square WaveOutput CurrentUp to 30mA (Signal Output)Output AmplitudeEqual to Supply VoltageControl MethodRotary Encoder with Push ButtonMemory FunctionYesDisplay Accuracy±1%Operating Temperature-20°C to +70°CBoard DimensionsApproximately 79 × 43 × 26mmWeightApproximately 35gApplicationsMotor Speed Control, LED Dimming, Servo Testing, PWM Signal Generation, Function Testing, Automation, Arduino & Microcontroller Projectsif you are looking for more Display for your future projects you can visit our latest and best selling display categories and buy the best suitable display for your projects.Package Includes:1 × Digital PWM Generator with Display

INR 362 · Out of stock
