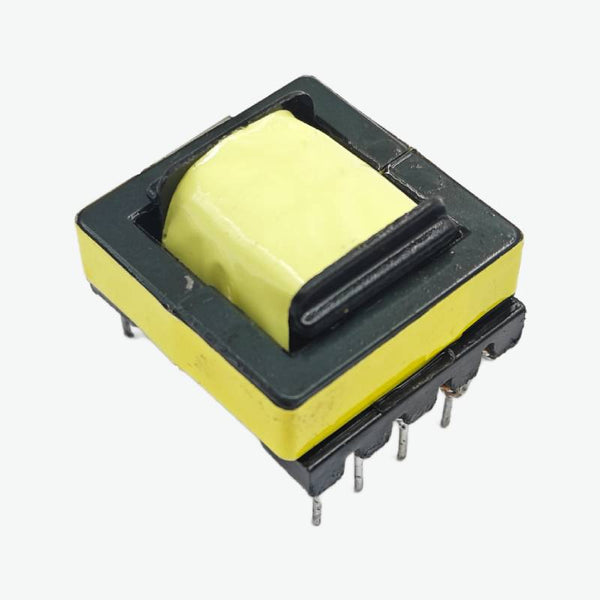

EE25 Horizontal SMPS High Frequency 20 Watt PCB Mount Transformer

The EE25 Horizontal High-Frequency SMPS Transformer is designed for reliable and compact power delivery in 20-watt switch-mode power supply (SMPS) circuits. Featuring a PC40 ferrite core and precision-wound high-grade copper wire, this transformer ensures excellent magnetic performance, low core loss, and high electrical efficiency. Its horizontal form factor makes it ideal for low-profile enclosures in AC-DC or DC-DC converters, adapters, and various industrial and consumer electronics.Features of EE25 Horizontal SMPS 20W Transformer:EE25 PC40 ferrite core offers low core loss and high efficiencySupports up to 20W output for compact SMPS applicationsHorizontal design provides a low-profile layout for tight PCB spacesWide working frequency range from 20kHz to 500kHzPrecision-wound high-grade copper windings ensure durabilityThrough-hole mounting provides strong and stable board integrationSpecifications of EE25 Horizontal SMPS 20W Transformer:Model Number: EE25Core Material - PC44Phase: SinglePower Rating: 20 WattsMax Secondary Current Draw: 2.5APrimary Winding: ~1.2mH, 48 Turns, 0.5mmSecondary Winding: 4 Turns, 3 × 0.4mmBias Winding: 7 Turns, 2 × 0.4mmWorking Frequency: 20kHz ~ 500kHzWinding Material: High-Grade CopperTemperature Range: –15°C to +105°CNumber of Pins: 6 PinMounting Style: Through HoleDimensions (L × B × H): 23.2mm × 27.8mm × 18.5mmWeight: Approx. 15gNote: This transformer is for high-frequency switching use only and is not suitable for direct connection to 50/60Hz AC mains.Package Includes:1 × EE25 Horizontal SMPS High Frequency 20 Watt PCB Mount Transformer

INR 48 · In stock
